High speed automatic dinner paper napkin printing machine in China
Brief introduction of the High speed automatic dinner napkin printing machine in China.

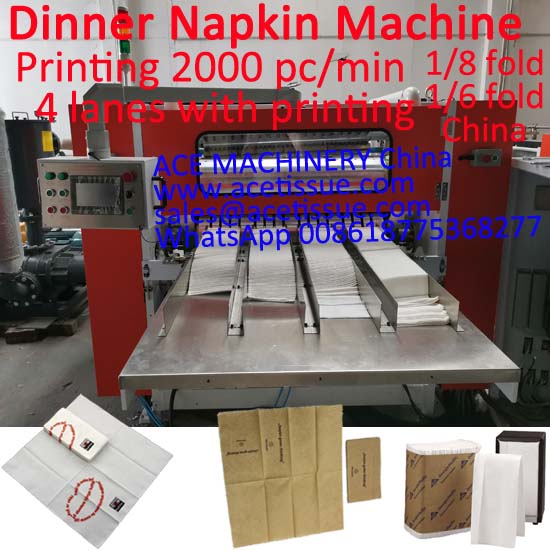

This high speed dinner paper napkin printing machine is a 4 lanes dinner paper napkin machine for 1/8 fold dinner napkin, 1/6 fold dispenser napkin, low fold dispenser napkin, 1/4 fold dispenser napkin, pocket fold napkin for fork and knife, kangaroo napkin, airlaid nonwoven napkin etc. It has a very high speed of about 2000 sheet/min, which can significantly increase the productivity but reduce labor cost.Below is video of this 4 lanes high speed dinner paper napkin printing machine for your reference.
Below are some samples which can be made by this high speed automatic dinner paper napkin printing machine for reference.
1- 2-ply Customized printed dinner napkins with logo, text, clipart, or artwork of choice premium.2- Morcon 1517 1-Ply 15" x 17" Morsoft White Dinner Napkin - 4500/Case
3- Morcon 1517-KFT recycled Kraft Natural Dinner Napkin.
4- Morcon D1217 White Off-Fold Full-Fold 9 1/2" x 17" Dispenser Napkin - 6000/Case
5- Choice 15" x 16" White Linen-Feel Flat-Packed Dinner Napkin - 500/Case
6- Touchstone by Choice White Linen-Feel Pocket Fold Dinner Napkin - 50/Pack
7- 15 1/2" x 15 1/2" White Flat Pack Linen-Feel Napkin - 750/Case
8- KIMBERLY-CLARK PROFESSIONAL KLEENEX® 2-Ply Dinner Napkin
9- Scott® 1/8 Fold Dinner Napkins 15” x 17”.
10- Dixie Ultra 1/8-Fold 3-Ply Paper Dinner Napkins
11- Georgia Pacific 8 folds dinner napkin.
12- Georgia Pacific Hynap Dispenser Napkin.
13- Mini fold dispenser napkin
14-Side fold dispenser napkin
Below are some samples can be made by this machine for your reference.
Technical details of the 4 lanes High speed automatic dinner napkin printing machine:
Product type:
dinner napkin printing machine.
Model number
ACE-DNM-4L
Dinner napkin size
16” x 17” , 16” x 15” etc.
Machine speed
(300 – 500) sheet / min lane x 4 lanes
= total 1200 – 2000 sheet / min.
Jumbo roll width
17” x 4 lanes = 68” width
Folding type:
1 / 8 folds
Book fold
1 / 6 folds
1 / 4 folds
Dispenser fold
Working type
Vacuum fold dinner napkin machine.
Embossing unit
Steel to paper embossing
Steel to steel embossing
Steel to rubber embossing
Steel to mirror embossing.
Can be customized as per dinner napkin
Color Printing Unit
2 colors to 4 colors printing
Jumbo roll stands
One jumbo roll or
2 jumbo rolls.
Some advantages of this high speed dinner paper napkin printing machine:
This 4 lanes dinner paper napkin printing machine is with Taiwan technology
1- The whole machine adopts floor standing thickened steel wallboard structure, same design as other heavy duty Taiwan dinner paper napkin printing machine. This Taiwan design can reduce the vibration when the machine runs at high speed.2- The whole machine is driven by advanced separate servo motor drive system, not the traditional belts or chains.
3- It is the fastest dinner paper napkin printing machine in China not with Taiwan design. The speed can be up to 2000 sheet / min. Most China dinner napkin machine can make only about 300 sheet/min.
4- It is a multi-functional dinner paper napkin printing machine which can make various dinner paper napkins. It can make 1 / 8 folds dinner napkin, book fold, 1 / 6 folds paper napkin, L type dispenser napkins, airlaid napkin, nonwoven napkin, Kangaroo fold or pocket fold napkin for fork and knife (as shown below) etc. It is a versatile dinner paper napkin machine for various sizes paper napkins with embossing and color printing.
5- This dinner paper napkin printing machine is with 4 lanes / 4 lines / 4 channels output. It can also be 6 lanes or 6 lines. It is now the best dinner paper napkin machine in China now.
Latest technology adopted on this 4 lanes dinner paper napkin printing machine.
Advantages of the embossing unit of this 4 lanes dinner paper napkin printing machine.
1- This dinner paper napkin printing machine is with steel to paper embossing unit. The embossing unit can also be steel to steel embossing, steel to rubber embossing or steel to mirror embossing. Steel to steel embossing can make very bulky dinner paper napkins with bigger volume but less paper. Steel to mirror embossing is the latest embossing technology innovated by ACE Machinery, the leading dinner paper napkin machine manufacturer in China since 1989. This steel to mirror embossing unit adopts the napkin machine latest technology, it can make the dinner paper napkin with very clear and attractive embossing patterns like words, flowers, Disney cartoons, human faces etc. This kind of high quality embossed dinner paper napkins are customized for the high end clients like five-star restaurants etc.2- The diameter of the embossing rollers is with very diameter, much bigger than the embossing rollers used on most other China dinner paper napkin printing machine. This kind of big diameter embossing roller can ensure longer time that the metal roll / steel embossing roller fits to the paper embossing roller / wool roller so as to guarantee the embossing pattern will be very clearly embossed on the dinner paper napkin.
3- The gears of the embossing unit of this dinner paper napkin printing machine is equipped with closed chamber lubrication system. The gears are always kept inside the lubricating cabinet. This can significantly prolong the life span of the embossing unit.
4- The embossing unit of this dinner paper napkin printing machine can be also equipped with heating system if necessary.
Flexo Color Printing Unit of this dinner napkin paper printing machine.
1- It is with two colors printing. But can be up to 4 colors printing or even six colors printing.2- The register tolerance can be ± 2mm or the other model ± 0.2mm. This can guarantee high quality and high resolution printed LOGO on the dinner paper napkin.
3- The whole color printing unit of this dinner paper napkin printing machine is driven by separate servo motor, not belt or chain, to ensure the printing precision.
4- It can print various size LOGOs on the dinner paper napkins like Disney cartoons, flowers, words, brand names, human face, animals etc.
5- The color printing unit is with protective covers to prevent the inks spill out from the printers and drop to the dinner paper napkins.
6- This dinner paper napkin printing machine is with doctor blade color printing unit or also called ink recycling color printing system. This printing system can prevent the paper scraps or dusts going into the inks, so as to ensure high quality printing on the dinner paper napkin.
