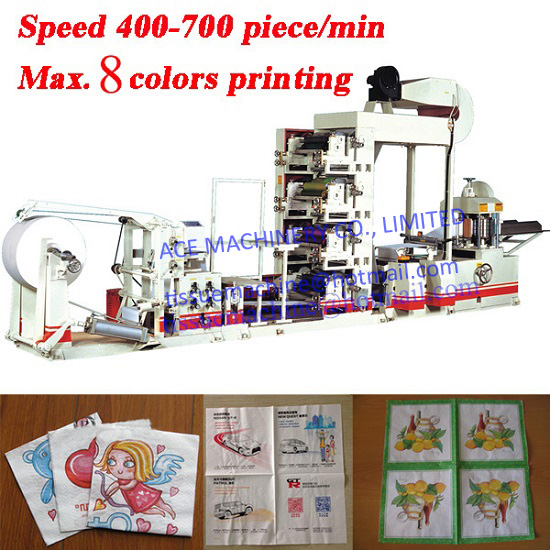

China Manufacturer of high quality color printing napkin paper machine

Below is Video of our Napkin Paper Machine with 4 Colors Printing for reference.


Technical parameter:

A. back stand

1.     Parent roll: 2 or 3 plies tissue paper.

2.     Parent roll size: ≤Φ1100 x (200 – 430)mm.  Diameter x Width

3.     Core inner diameter: 76mm

B. Feeding Section

1.     With 1 unwind stands;

2.     Floor-standing thickened Wallboard structure (complete steel plate) to ensure high speed stable running no vibration.

3.     Pneumatic cylinder control

4.     Stepless adjusting speed to control web-tension of paper.

5.     Auto adjustment setting

6.     With pneumatic system to automatically load jumbo rolls.

7.     With automatic web tension control system. Web tension control: constant tension control by floating roll.

8.     With automatic edge guiding system. Automatic electrical deviation control: Internationally famous brand.

9.     Paper transport: step-less speed regulating (triangular belt).

C.     Embossing Section

1.     One set of steel to paper embossing unit. (Embossing pattern provided by client or recommend by us)

2.     Mechanical press type.

3.     Floor-standing thickened Wallboard structure(complete steel plate) to ensure high speed stable running no vibration.

4.     With 1 set of steel to steel Calendering unit.

D.    Printing Section (advanced design.)

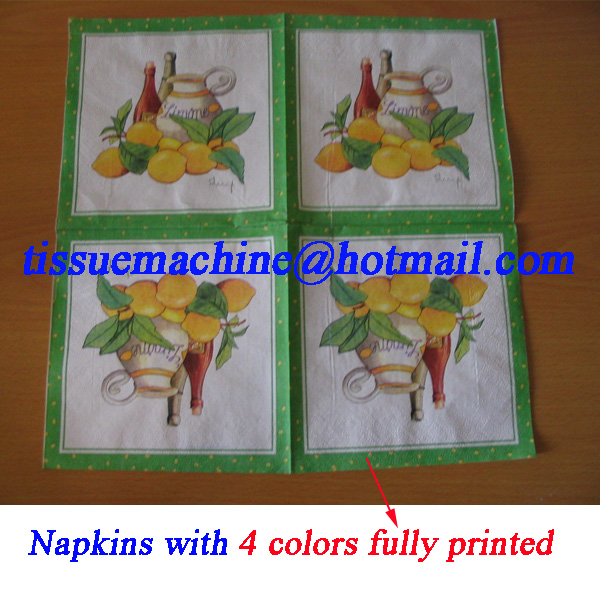

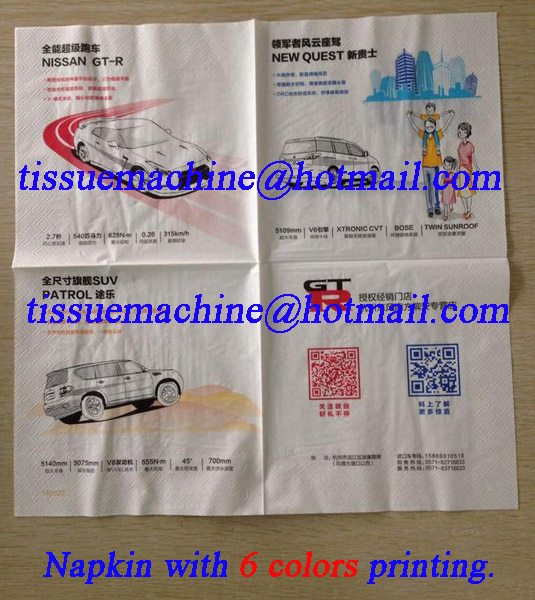

1.     With 4 colors flexo-graphic printer section. (High quality printing) (available 2-8 colors)

2.     With ceramic anilox printing rollers.

3.     Printing unit with driven by timing belts to make printing more precise.

4.     Simple and easy adjustment of horizontal and longitudinal registration by turning hand wheel.

5.     Both sides of Anilox roll & Rubber roll with buffer for anti-spill cover to stop the ink spilling out of the ink tank and spraying somewhere.

6.     The printer is equipped with covers on the in tank to prevent the inks spilling out of the ink tanks.

7.     With printing ink reservoir for reserve dropping ink and avoid ink dropping on machine or place to keep environment clean.

8.     Casting iron forming foundation. Floor-standing thickened Wallboard structure (complete plate) to ensure high speed stable running no vibration.

9.     With one set of heating device (Dryer) for heating the napkin to make the printing LOGO dry fast.



E.     Folding Section

1.     Napkin size:  230x230mm(folded 115x115mm), 300x300mm(folded150x150mm), 330x330mm(folded165x165mm), 400x400mm(folded 200x200mm) etc.

2.     Folder type: 1/4 fold, mechanical folding type.

3.     Loop knife cutting, and distance of two rollers can be adjustable

4.     Speed: about 120-200 m/min, depending on paper quality, gsm and workers operation etc..

5.     Floor-standing thickened Wallboard structure(complete steel plate) to ensure high speed stable running no vibration.

6.     With automatic counting unit(1-9999). With single tissue pop up every count.

F.     Control system

1.     With JOG function.

2.     With emergency stop function.

3.     With auto sensors for detecting paper breaks or used up. Machine will automatically stop if paper breaks or used up.

4.     Famous brand motor and bearings.

5.     Installed Power: total about 11.7 kw (3-phase AC380V 50Hz or customized)

-Main motor power: 4.5kw

-Band saw: 2.2KW

-Heating dryer: 2KW

-Lighting: 1KW

    -Others: 2KW

6.     Pressure: 0.5MPa.

7.     Machine size about ( L*W*H) 6050*1530*2500mm

8.     Weight: about 4000 kg
