China 20 years’ experience professional manufacturer of Heavy Duty Machine for Box Drawing Facial Tissue Interfold Napkin Pop Up Interleaved Paper with Printing Lamination by ACE MACHINERY CO., LIMITED has lamination,full embossing, edge embossing.


  • Product No.: ACE-V200-10L

Details

Italy Design High Speed Automatic Facial Tissue Machine

Detailed description of Italy Design High Speed Automatic Facial Tissue Machine

Model

VTM-200-10L

Output 10lines output.  Other capacity like 3lines, 4lines, up to 15lines are available.
Folding speed 800-1000 sheet/min/line x 10 lines, depending on paper quality and workers' operation.

Use

Production of facial tissues andinterfold V fold hand towel. Two produced by One machine

Raw material

13-40gsm 2-ply or 1-ply virgin tissue or other tissue

Jumbo roll size

2000mm width x 1100 mm diameter. Other sizes available. Width can be up to 2500mm.

Unfolded size

200±2mm x 200mm. Other size 190x190mm, 210x210mm, 230x250mm etc. available. Please specify.

Folded size

100±2mm x 200mm. One cutting size is adjustable

Folding Type

V fold/Interfold/vacuum fold

Control

Main motor controlled by inverter

Frequency speed control

Emergency stop if paper breaks

Vacuum pump for adsorption

Air pressure:0.5Mpa(buyer supply)

Folding unit

Thickened Floor standing wallboard structure(Full steel plate) so that the machine is running at high speed without vibration.

Automatic counting unit

Embossing unit

2 set of steel-to-rubber embossing rollers(Pattern provided by client)

Thickened Floor standing wallboard structure(Full steel plate)

Controlled by NEW design level-type cylinder, not screws. Italy and Taiwan design.

Edge embossing

Optional with NEW design.

Laminating unit

Optional

Jumbo roll stand

2 back stand, controlled cushion cylinder

Web tension control

Adding perfume unit(Optional)

Power

7KW main motor, 22KW vacuum pump 3-phase AC380V 50HZ or 2-phase 220V 60Hz, or customized.

Machine Size

6000x2500x1900mm

Weight

6500KG



Below are more details of our Italy Design High Speed Automatic Facial Tissue Machine

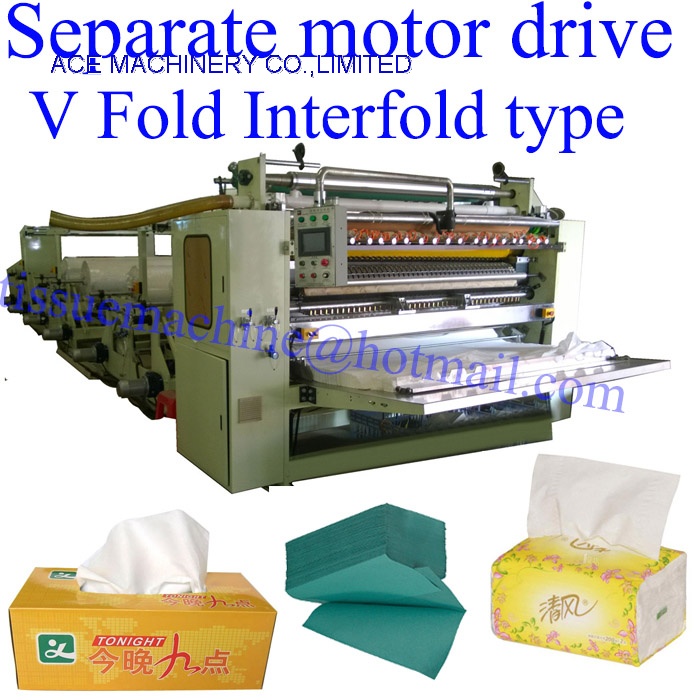

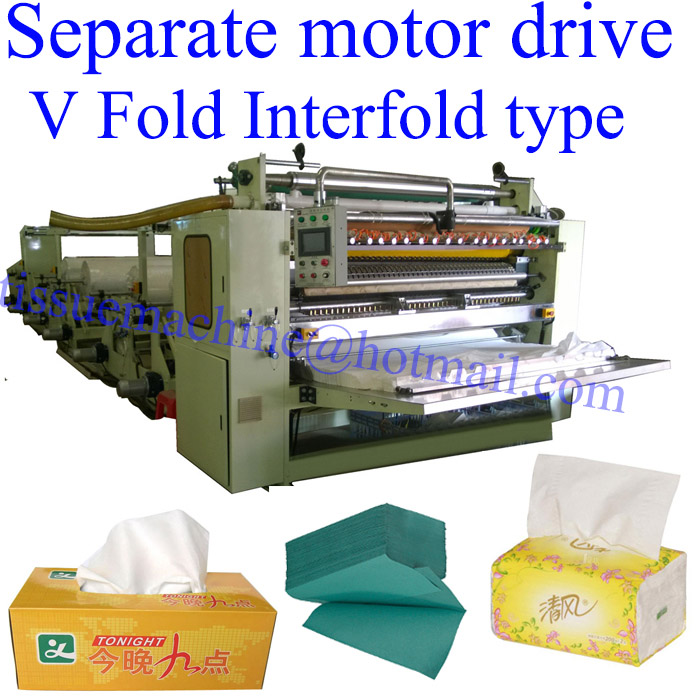

Overall view of Italy Design High Speed Automatic Facial Tissue Machine

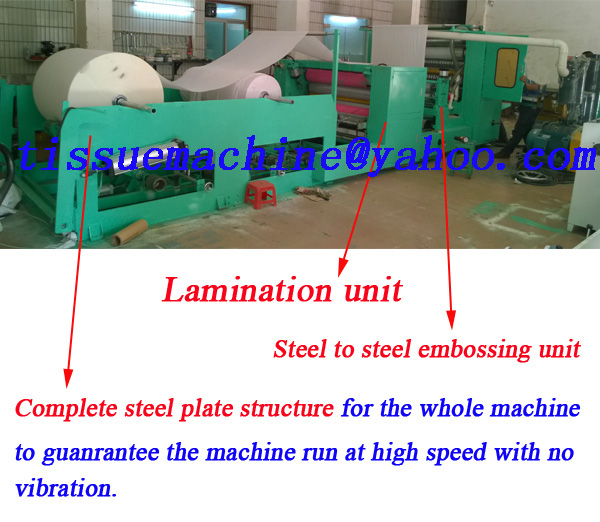

Our Italy Design High Speed Automatic Facial Tissue Machine is with complete steel plate structure.

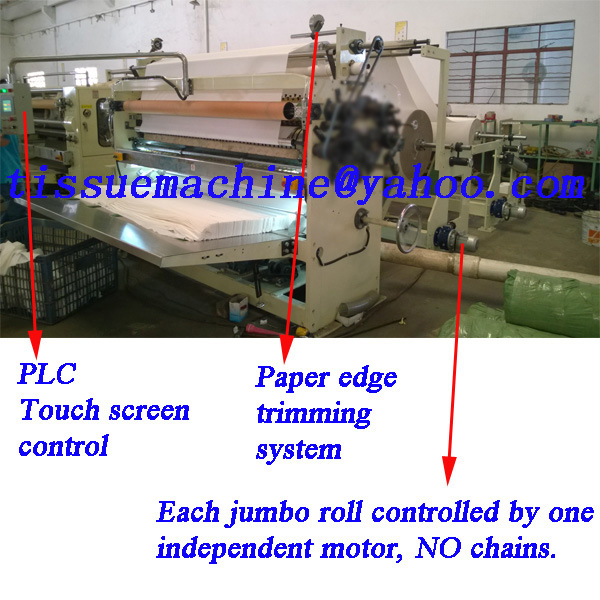

Our Italy Design High Speed Automatic Facial Tissue Machine is with Lamination unit, steel to steel embossing unit and Taiwan Vacuum Pump.

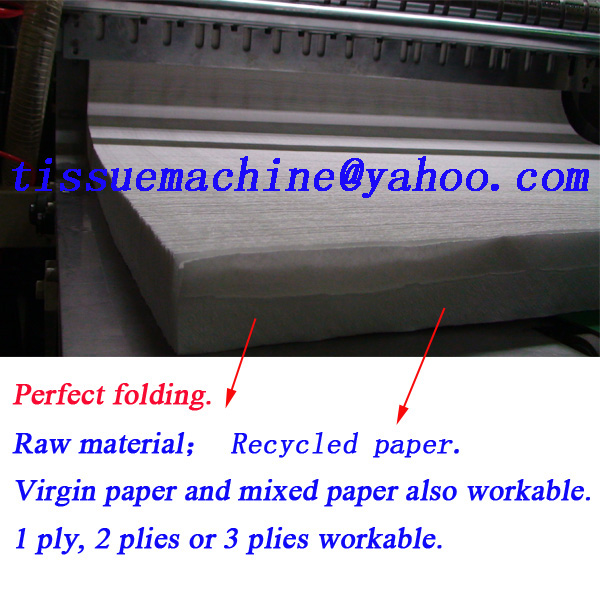

Perfect folding of our Italy Design High Speed Automatic Facial Tissue Machine. The jumbo roll width is 2000mm for 10lines output. The folding is still perfect while running at stable speed of 1000 sheet/min/line.





Our Italy Design High Speed Automatic Facial Tissue Machine is able to work with 1,2 or 3 plies of virgin paper, mixed/blended pulp paper, recycled paper with different quality and 13-45gsm.

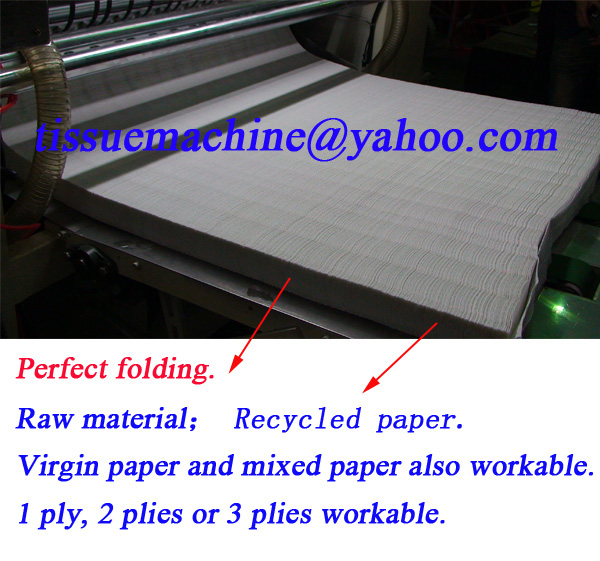

Perfect folding of our Italy Design High Speed Automatic Facial Tissue Machine

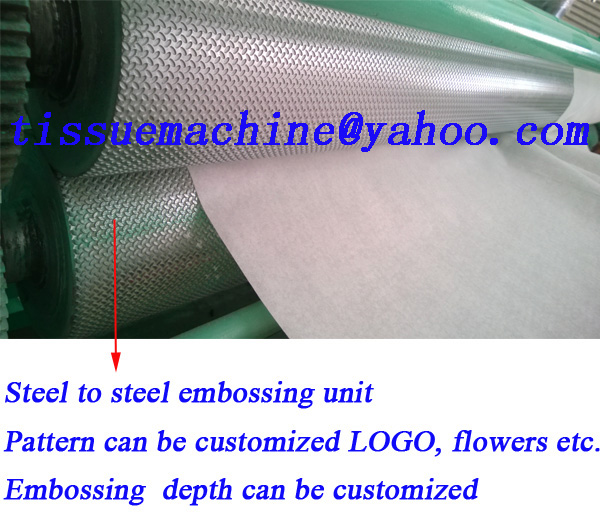

Steel to steel embossing unit of Italy Design High Speed Automatic Facial Tissue Machine, the embossing pattern can be customized dots, LOGO, flowers, words etc.

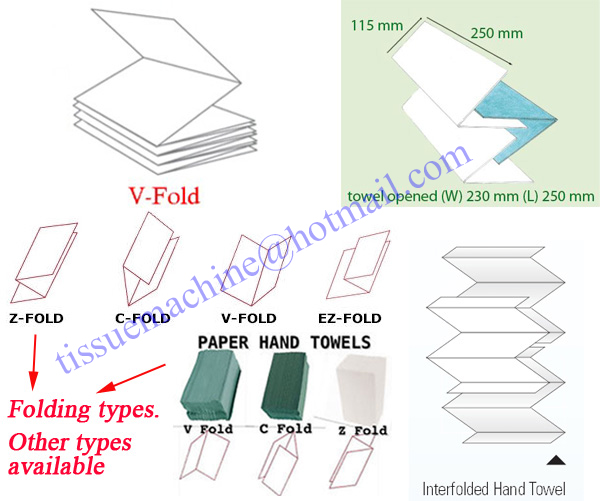

Folding types of our Italy Design High Speed Automatic Facial Tissue Machine can be V fold, Interfold, C fold, N fold, M fold, W fold and so on. Other folding types also available.

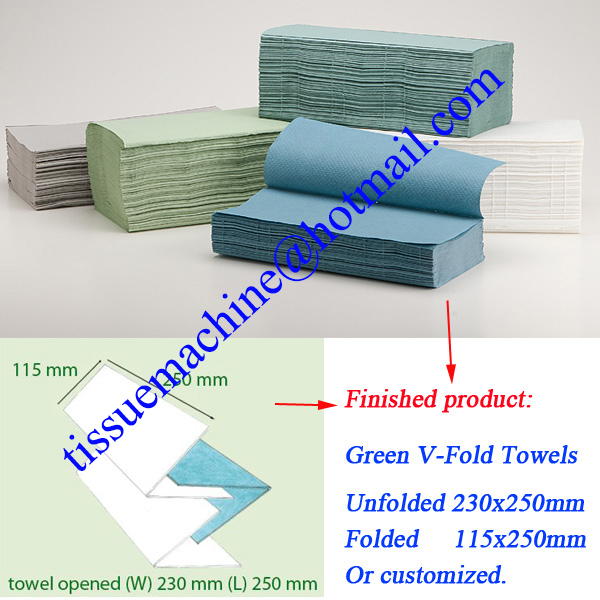

Green V Fold Towels made by our Italy Design High Speed Automatic Facial Tissue Machine, unfolded size 230x250mm and folded 115x250mm.

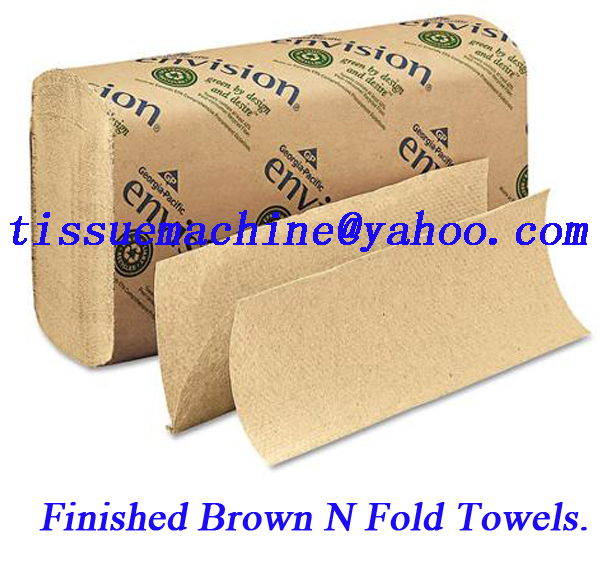

N Fold towels made by our Italy Design High Speed Automatic Facial Tissue Machine.

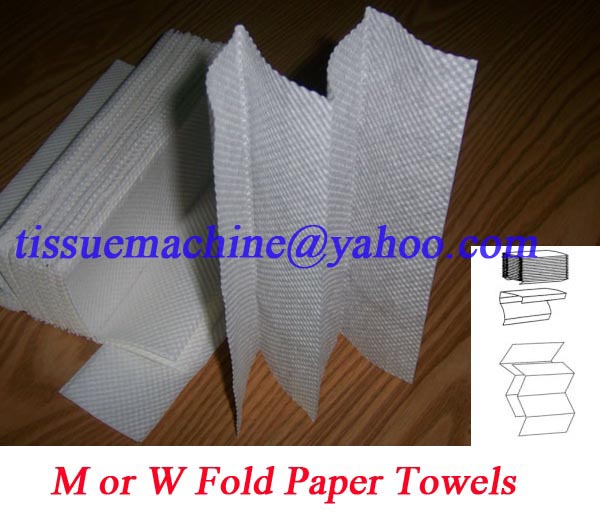

M Fold towels made by our Italy Design High Speed Automatic Facial Tissue Machine.

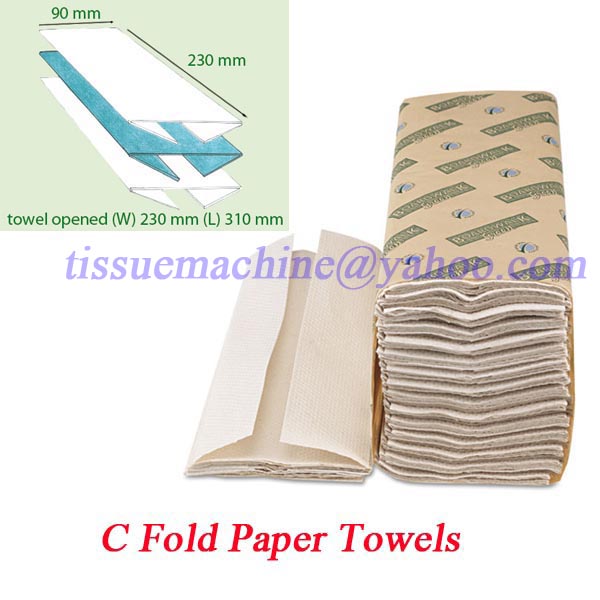

C Fold towels made by our Italy Design High Speed Automatic Facial Tissue Machine. Unfolded size 230x310mm and folded size 90x230mm.

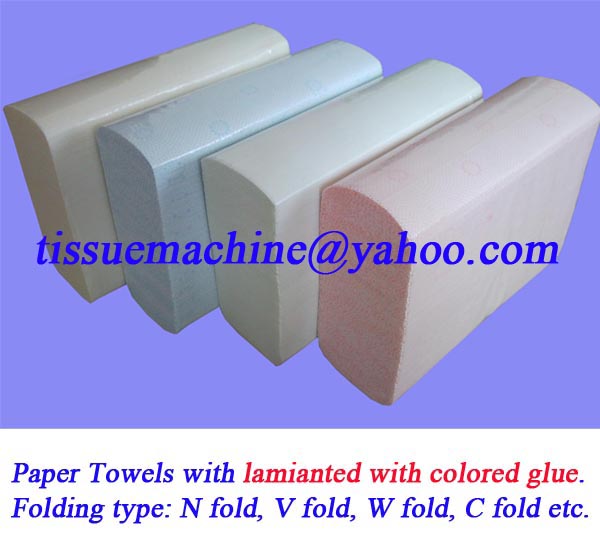

Laminated towels with colored glue made by our Italy Design High Speed Automatic Facial Tissue Machine.

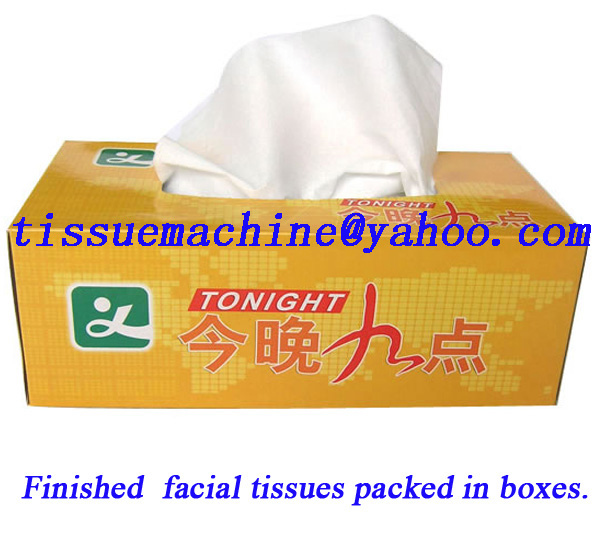

Boxed facial tissues made by our Italy Design High Speed Automatic Facial Tissue Machine.

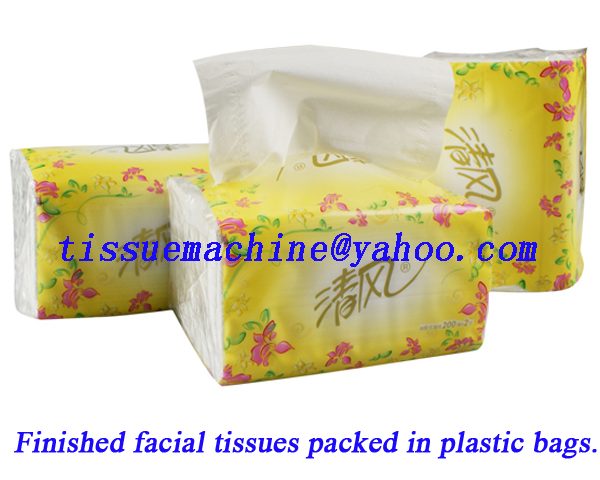

Soft plastic packed facial tissues made by our Italy Design High Speed Automatic Facial Tissue Machine.
