China 20 years’ experience professional manufacturer of Lamination M W Four Five Six Folds Tissue Paper Hand Towel Interfolder Machine by ACE MACHINERY CO., LIMITED China. Can customize lamination or colors printing.


  • Product No.: ACE-MTM-6L-L

Details

Copy High Speed Automatic Lamination M W Four Five Six Folds Tissue Paper Hand Towel Interfolder Machine

Detailed description of  Lamination M W Four Five Six Folds Tissue Paper Hand Towel Interfolder Machine

Model

MTM-6L-L

Output 6 lines output.  Other capacity like 3lines, 4lines, up to 15lines are available.
Folding Speed
600-1000 sheet/min/line x 6 lines, depending on paper quality and workers' operation.

Use

Production of interfold N fold hand towel.

Raw material

20-55gsm 2-ply or 1-ply virgin tissue or other tissue

Jumbo roll size

1260mm width x 1100 mm diameter. Other sizes available. Width can be up to 2500mm.

Open size

240±2mm x 210mm. Other size 210x210mm, 250x250mm etc. available. Please specify.

Folded size

  60±2mm x 210mm. The cutting size is adjustable

Folding Type

 Four folds M fold Interfold vacuum fold

Control

Main motor controlled by inverter
Frequency speed control

Emergency stop if paper breaks
Vacuum pump for adsorption
Air pressure:0.5Mpa(buyer supply)

Folding unit

Thickened Floor standing wallboard structure(Full steel plate) so that the machine is running at high speed without vibration.
Automatic counting unit

Embossing unit

1 set of steel-to-steel embossing unit. (Pattern provided by client)
Thickened Floor standing wallboard structure(Full steel plate)
Controlled by NEW design level-type cylinder
, not screws. Italy and Taiwan design.

Laminating unit

The whole design is copied Italy design.
Crown on the embossing rolls.
Heavy chrome coating roll
Micro-adjustment of nips between the steel roll

Anilox roll for glue applicant.

Controlled by cylinders

Each lamination unit controlled by an independent speed-reducing motor.
When the machine stops, the motor will start running to rotate the anilox roll to prevent it getting dry.

Jumbo roll stand

With 2 back stand, controlled cushion cylinder
Web tension control
Automatic loading jumbo rolls.

Power

7.5KW main motor, 22KW vacuum pump
3-phase AC380V 50HZ or 3-phase 220V 60Hz,
or customized.

Machine Size

6000x2500x1900mm

Weight

6500KG

 Below are more details of our Lamination M W Four Five Six Folds Tissue Paper Hand Towel Interfolder Machine

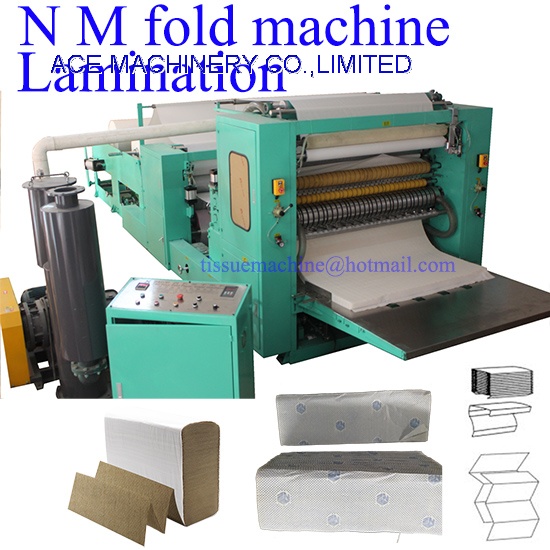

Overall view of Lamination M W Four Five Six Folds Tissue Paper Hand Towel Interfolder Machine







Overall view of  Lamination M W Four Five Six Folds Tissue Paper Hand Towel Interfolder Machine



Our Lamination M W Four Five Six Folds Tissue Paper Hand Towel Interfolder Machine is with complete steel plate structure.





Our Lamination M W Four Five Six Folds Tissue Paper Hand Towel Interfolder Machine is with steel to steel embossing unit and Taiwan Vacuum Pump.








Perfect folding of our Lamination M W Four Five Six Folds Tissue Paper Hand Towel Interfolder Machine. The jumbo roll width is 1440mm for 6 lines output. The folding is still perfect while running at stable speed of 600-1000 sheet/min/line.



Our Lamination M W Four Five Six Folds Tissue Paper Hand Towel Interfolder Machine is able to work with 1,2 or 3 plies of virgin paper, mixed/blended pulp paper, recycled paper with different quality and 13-45gsm.





Our Lamination M W Four Five Six Folds Tissue Paper Hand Towel Interfolder Machine can work with Brown Towels.





Finished Brown Towels produced by our Lamination M W Four Five Six Folds Tissue Paper Hand Towel Interfolder Machine.




Folding types of our Lamination M W Four Five Six Folds Tissue Paper Hand Towel Interfolder Machine can be four folds, five folds, six folds, M fold, W fold, V+N folds and so on. Other folding types also available.




Laminated M Fold hand towels made by our Lamination M W Four Five Six Folds Tissue Paper Hand Towel Interfolder Machine.



 Our Lamination M W Four Five Six Folds Tissue Paper Hand Towel Interfolder Machine can also convert Green Towels.





Green Fold towels made by our Lamination M W Four Five Six Folds Tissue Paper Hand Towel Interfolder Machine.







Laminated towels with colored glue made by our Lamination M W Four Five Six Folds Tissue Paper Hand Towel Interfolder Machine.







We have Fully-auto Band Saw to connect our Lamination M W Four Five Six Folds Tissue Paper Hand Towel Interfolder Machine.
