Customized Tabletop Xpressnap Tallfold Dispenser Napkin Machine for Converting Folding Embossing Cocktail Beverage Luncheon tissues

China 20 years experience manufacturer of fastest 3600 sheet/min Tabletop Xpressnap Tallfold Dispenser Napkin Machine for Converting Folding Embossing Cocktail Beverage Luncheon tissues made by ACE MACHINERY CO., LIMITED

Product No.: TNM-2L-H

Online Inquiry Email Us

Details

3600 sheet/min Tabletop Xpressnap Tallfold Dispenser Napkin Machine for Converting Folding Embossing Cocktail Beverage Luncheon tissues

Model	TNM-2L-H 300 m/min Double Tracks 1/4 3600 sheet/min Tabletop Xpressnap Tallfold Dispenser Napkin Machine for Converting Folding Embossing Cocktail Beverage Luncheon Tissue Folding Converting Making Printing Embossing Function copied Italy technology
Output type	2 tracks/layers (4 lanes) Output Delivery, 1 or 2 Decks delivery machine available.
Capacity	about 1500 sheet/min/track x 2 tracks/layers = 3000 sheet/min total, depending on the paper quality and napkin size etc.
Raw paper	13-20g/m2 2-ply, 20-35g/m2 1-ply, wooden pulp paper or to be specified. Other sizes likenonwoven or airlaid please specify.
Jumbo roll size	Φ1200x(200-460)x3 (Depending on your napkin size,customized)
Napkin unfolded size	200mm x 200mm to 460mm x 460mm or 7x13.5”or Customized.
Napkin folded size	100mm x 100mm to 230mm x 230mm or 7x13.5” One size is fixed. One napkin size is adjustable, decided by the paper roll width.
Folding type	Mechanical fold; 1/4 fold; Quarter fold. single sheet V fold, 1/2 fold, 1/6 fold, 1/8 fold etc. dispenser fold or customized. Vacuum folding and other folding types available.
Folding Section	With folding fingers. With automatic counting system, one tissue will pop up every count of 50, 100, 150,200 sheets etc. The gap between folding rollers can be adjusted to adapt the machine to papers of different quality and gsm. Easy operation and adjustment.
Embossing Section	1- Steel to paper(wool-coated), Male to female. (Steel to steel is available.) 2- Embossing pattern can be customized any LOGO, brand name, flowers etc. 3- Embossing pattern can be customized by client or recommended by us 4- Controlled by screws, mechanical pressing type. Cylinder type is optional. 5- We have innovated NEW Embossing Technology which can make the embossing pattern transparent very attractive. Please contact us for more details.
Printing Section	With 2 colors(2 sets) flexo-graphic printer section. 2, 3, 4 colors optional. Printing colors customized up to 8 colors. The other model. Printing Logo is changeable. You just need to change the Printing Rubber only. Printing rollers can be adjusted flexibly and easily. With anilox roller. Printing unit with driven by timing belts to make printing more precise. Between printing color to color location which will accept ±1-2 mm tolerance. With New Register device, Register adjustment color to color position will use 360° rotation speed modulators device which is easy to adjust. Simple and easy adjustment of horizontal and longitudinal registration by turning hand wheel.
Unwind stand	With 1 unwind stand, controlled by pneumatic cylinders, with feeding belt. With pneumatic system to load the jumbo rolls automatically. With paper web tension control systems to adept the machine to jumbo rolls of different quality and gsm. Equipped with hand wheel or independent motor to adjust the jumbo roll to the left/right. Equipped with sensors to dectect the jumbo roll, if finished, machine will automatically alarm and stop. Auto Web tension control system is optional. Auto edge guiding system is optional..
Control system	Main motor controlled by inverter, international brands from Taiwan, Japan, Germany etc. Frequency speed control With JOG devices (step by step for passage and adjusting paper). Emergency stop if paper breaks or finished. Start machine with alarm beeper. Air pressure:0.5Mpa
Installed Power	7.5KW. 3phase AC380V 50Hz or 3phase 220V,60Hz or 3phase 440V 60Hz or customized
Machine size	7x1.5x2.1(m)
Weight	4000KG
Contact details	Email: [email protected] [email protected] Skype: tissuemachine
Videos and photos available.

Below are photos of our 300 m/min Double Tracks 1/4 Quarterfold 3600 sheet/min Tabletop Xpressnap Tallfold Dispenser Napkin Machine for Converting Folding Embossing Cocktail Beverage Luncheon tissues Folding Converting Making Printing Embossing Function copied Italy technology for your reference.

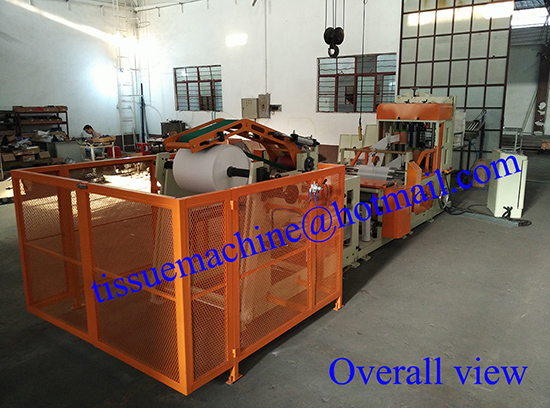

Overall view of our 300 m/min Double Tracks 1/4 Quarterfold Paper Napkin Machine with Automatic High Speed 3600 sheet/min Tabletop Xpressnap Tallfold Dispenser Napkin Machine for Converting Folding Embossing Cocktail Beverage Luncheon tissues Folding Converting Making Printing Embossing Function copied Italy technology.

Side view of 300 m/min Double Tracks 1/4 Quarterfold Paper Napkin Machine with Automatic High Speed 3600 sheet/min Tabletop Xpressnap Tallfold Dispenser Napkin Machine for Converting Folding Embossing Cocktail Beverage Luncheon tissues Folding Converting Making Printing Embossing Function copied Italy technology

3 decks of folded output delivered to the table for workers easily to collect and pack the napkins of 300 m/min Double Tracks 1/4 Quarterfold Paper Napkin Machine with Automatic High Speed Serviette Tissue Folding Converting Making Printing Embossing Function copied Italy technology

Perfect folding of 300 m/min Double Tracks 1/4 Quarterfold Paper Napkin Machine with Automatic High Speed Serviette Tissue Folding Converting Making Printing Embossing Function copied Italy technology

Our 300 m/min Double Tracks 1/4 Quarterfold Paper Napkin Machine with Automatic High Speed Serviette Tissue Folding Converting Making Printing Embossing Function copied Italy technology working in customer's factory.

We have also 2 Decks Delivery Embossing Printing High Speed Automatic Napkin Machinewith speed up to 2500 piece per minute.

Other companies printers VS our advanced Printers copied Italy technology of Our 3 Decks Delivery Copied Taiwan Italy Design Up to 3600 Piece Per Minute Embossing Printing High Speed Automatic Napkin Machine. It with copied Italy design, easy and flexible adjusting system. With special system to prevent the ink spilling out of the ink tanks even though the machine is running at hgih speed.

our Decks Delivery Copied Taiwan Italy Design Up to 3600 Piece Per Minute Embossing Printing High Speed Automatic Napkin Machineis with FELT to clean the paper dust to prevent tissues getting stuck to the embossing rollers.

Embossing pattern of our 3 Decks Delivery Copied Taiwan Italy Design Up to 3600 Piece Per Minute Embossing Printing High Speed Automatic Napkin Machine. It can be any customized company LOGO, brand name, flowers etc.

Finished Tissues

Bulky deep embossed Napkins made by Our 3 Decks Delivery Copied Taiwan Italy Design Up to 3600 Piece Per Minute Embossing Printing High Speed Automatic Napkin Machine.

Below are embossing patterns made by the NEW Embossing Technology of 3 Decks Delivery Copied Taiwan Italy Design Up to 3600 Piece Per Minute Embossing Printing High Speed Automatic Napkin Machine.

The embossing patterns made by the NEW Embossing Technology of 3 Decks Delivery Copied Taiwan Italy Design Up to 3600 Piece Per Minute Embossing Printing High Speed Automatic Napkin Machine. looks very attractive.

Folding type of our 3 Decks Delivery Copied Taiwan Italy Design Up to 3600 Piece Per Minute Embossing Printing High Speed Automatic Napkin Machinecan be any customized 1/4 fold, 1/6 fold, 1/8 fold or special fold. Please specify.

Below is 1/6 fold napkin made by our 3 Decks Delivery Copied Taiwan Italy Design Up to 3600 Piece Per Minute Embossing Printing High Speed Automatic Napkin Machine.
