Fully Automatic Paper Napkin Production Line with Auto Transfer to Packing Machine

Fully Automatic Paper Napkin Production Line with Auto Transfer to Packing Machine

China 20 years’ experience professional manufacturer of Fully Automatic Paper Napkin Production Line with Auto Transfer to Packing Machine by ACE MACHINERY CO., LIMITED China. Can customize lamination or colors printing.


  • Product No.: TNL

Details

China Fully Automatic Paper Napkin Production Line with Auto Transfer to Packing Machine


Specification of China
Fully Automatic Paper Napkin Production Line with Auto Transfer to Packing Machine as below.




Model

TNL China Fully Automatic Paper Napkin Production Line with Auto Transfer to Packing Machiner for converting Napkin Machine for Converting Folding Embossing Cocktail Beverage Luncheon Tissue Folding Converting Making Printing Embossing Function copied Italy technology

Output type

Single deck/layer (2lines)  (double decks can be customized.)

Capacity

about 1500 sheet/min/track x 2 tracks/layers = 3000 sheet/min total, depending on the paper quality and napkin size etc.

Raw paper

13-20g/m2 2-ply, 20-35g/m2 1-ply, wooden pulp paper or to be specified.

Other sizes like nonwoven or airlaid please specify.

Jumbo roll size

Φ1200x(200-460)x3 (Depending on your napkin size,customized)

Napkin unfolded size

200mm x 200mm to 460mm x 460mm or  7x13.5”or Customized.

Napkin folded size

100mm x 100mm to 230mm x 230mm or 7x13.5”
One size is fixed. One napkin size is adjustable, decided by the paper roll width.

Folding type

Mechanical fold;
1/4 fold; Quarter fold. single sheet V fold, 1/2 fold, 1/6 fold, 1/8 fold etc. dispenser fold or customized.
Vacuum folding and other folding types available.

Folding Section

With folding fingers.

With automatic counting system, one tissue will pop up every count of 50, 100, 150,200 sheets etc.

The gap between folding rollers can be adjusted to adapt the machine to papers of different quality and gsm.

Easy operation and adjustment.

Embossing Section

1- Steel to paper(wool-coated), Male to female.  (Steel to steel is available.)

2- Embossing pattern can be customized any LOGO, brand name, flowers etc.

3- Embossing pattern can be customized by client or recommended by us

4- Controlled by screws, mechanical pressing type. Cylinder type is optional.

5- We have innovated NEW Embossing Technology which can make the embossing pattern transparent very attractive. Please contact us for more details.

Printing Section

With 2 colors(2 sets) flexo-graphic printer section. 2, 3, 4 colors optional.

Printing colors customized up to 8 colors. The other model.

Printing Logo is changeable. You just need to change the Printing Rubber only.

Printing rollers can be adjusted flexibly and easily.

With anilox roller.

Printing unit with driven by timing belts to make printing more precise.

Between printing color to color location which will accept ±1-2 mm tolerance.

With New Register device, Register adjustment color to color position will use 360° rotation speed modulators device which is easy to adjust.

Simple and easy adjustment of horizontal and longitudinal registration by turning hand wheel.

Unwind stand

With 1 unwind stand, controlled by pneumatic cylinders, with feeding belt.

With pneumatic system to load the jumbo rolls automatically.

With paper web tension control systems to adept the machine to jumbo rolls of different quality and gsm.

Equipped with hand wheel or independent motor to adjust the jumbo roll to the left/right.

Equipped with sensors to dectect the jumbo roll, if finished, machine will automatically alarm and stop.

Auto Web tension control system is optional.

Auto edge guiding system is optional..

Control system

Main motor controlled by inverter, international brands from Taiwan, Japan, Germany etc.
Frequency speed control

With JOG devices (step by step for passage and adjusting paper).
Emergency stop if paper breaks or finished.
Start machine with alarm beeper.
Air pressure:0.5Mpa

Installed Power

7.5KW. 3phase AC380V 50Hz or 3phase 220V,60Hz or 3phase 440V 60Hz or customized

Machine size

7x1.5x2.1(m)

Weight

4000KG

Contact details

Email:  tissuemachine@hotmail.com

             tissuemachine@yahoo.com

Skype: tissuemachine

Videos and photos available.


Below video for your reference.

Below are photos of our 300 m/min Double Tracks 1/4 Quarterfold 3600 sheet/min Tabletop Xpressnap Tallfold Dispenser Napkin Machine for Converting Folding Embossing Cocktail Beverage Luncheon tissues Folding Converting Making Printing Embossing Function copied Italy technology for your reference.

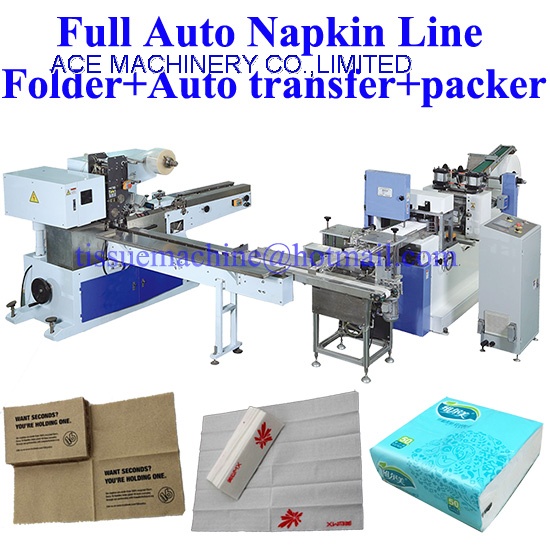

Overall view of our 300 m/min Double Tracks 1/4 Quarterfold Paper Napkin Machine with Automatic High Speed 3600 sheet/min Tabletop Xpressnap Tallfold Dispenser Napkin Machine for Converting Folding Embossing Cocktail Beverage Luncheon tissues Folding Converting Making Printing Embossing Function copied Italy technology

fully automatic paper napkin line with auto transfer

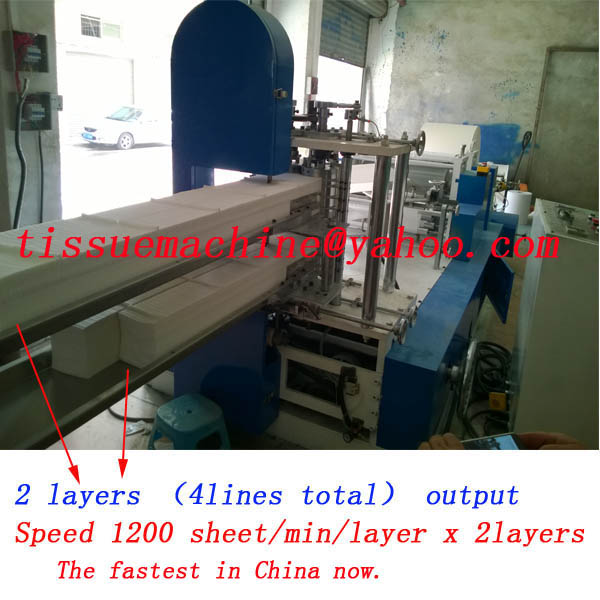

3 decks of folded output delivered to the table for workers easily to collect and pack the napkins of 300 m/min Double Tracks 1/4 Quarterfold Paper Napkin Machine with Automatic High Speed Serviette Tissue Folding Converting Making Printing Embossing Function copied Italy technology

fully automatic napkin converting line





Perfect folding of 300 m/min Double Tracks 1/4 Quarterfold Paper Napkin Machine with Automatic High Speed Serviette Tissue Folding Converting Making Printing Embossing Function copied Italy technology

fully automatic paper napkin production line





Our 300 m/min Double Tracks 1/4 Quarterfold Paper Napkin Machine with Automatic High Speed Serviette Tissue Folding Converting Making Printing Embossing Function copied Italy technology working in customer's factory.

fully automatic paper napkin machine line



 We have also 2 Decks Delivery Embossing Printing High Speed Automatic Napkin Machinewith speed up to 2500 piece per minute.

fully automatic production line for paper napkins

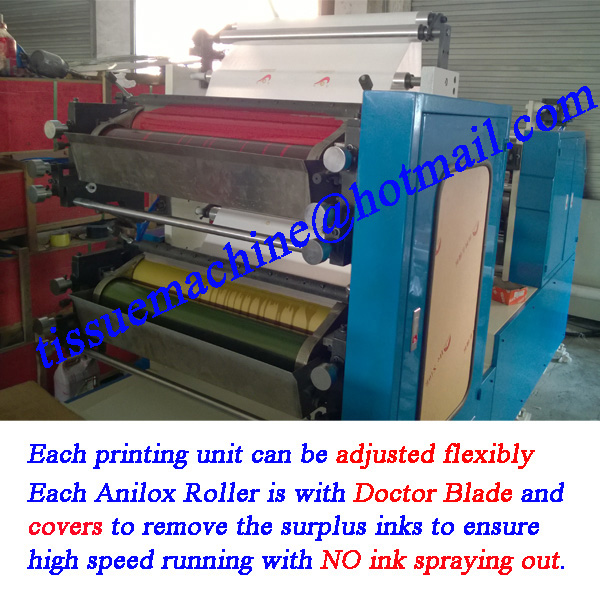

Other companies printers VS our advanced Printers copied Italy technology of Our 3 Decks Delivery Copied Taiwan Italy Design Up to 3600 Piece Per Minute Embossing Printing High Speed Automatic Napkin Machine It with copied Italy design, easy and flexible adjusting system. With special system to prevent the ink spilling out of the ink tanks even though the machine is running at hgih speed.

automatic paper napkin machine with packing

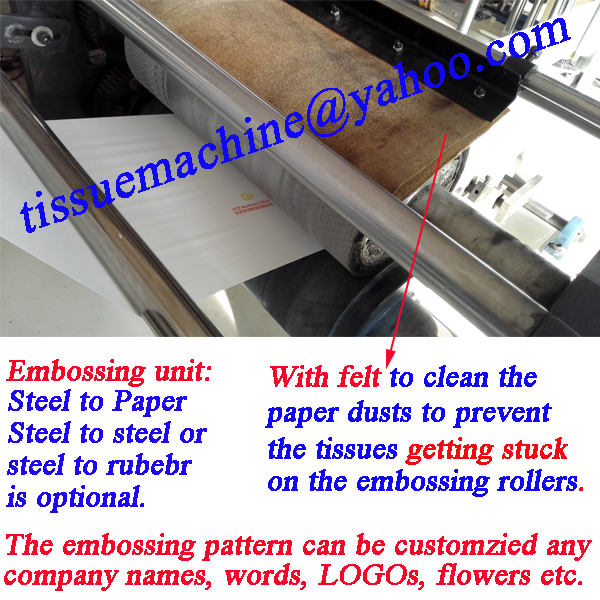

 our Decks Delivery Copied Taiwan Italy Design Up to 3600 Piece Per Minute Embossing Printing High Speed Automatic Napkin Machineis with FELT to clean the paper dust to prevent tissues getting stuck to the embossing rollers.

 fully automatic napkin folding cutting line

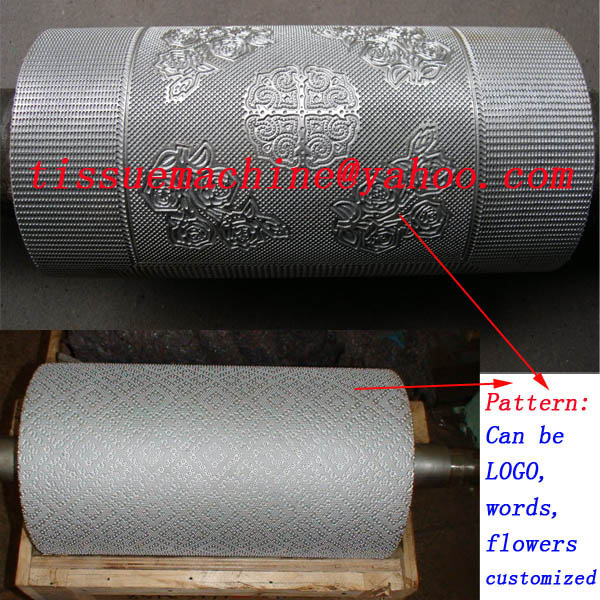

Embossing pattern of our 3 Decks Delivery Copied Taiwan Italy Design Up to 3600 Piece Per Minute Embossing Printing High Speed Automatic Napkin Machine  It can be any customized company LOGO, brand name, flowers etc.

 fully automatic napkin production line in China

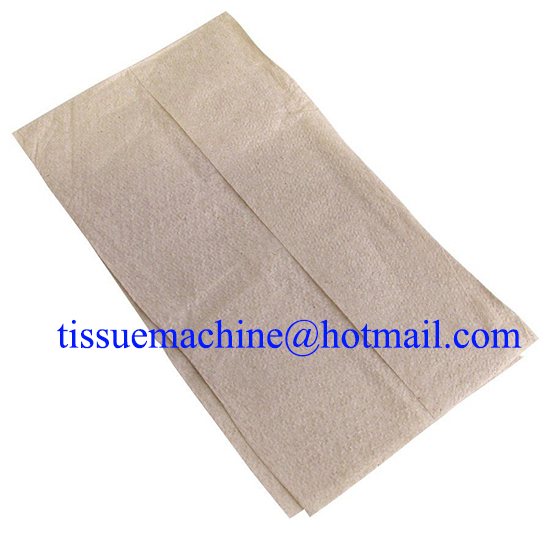

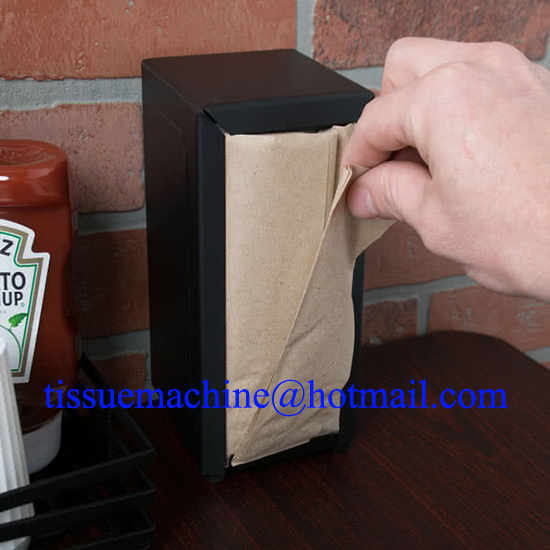

Finished Tissues



Bulky deep embossed Napkins made by Our 3 Decks Delivery Copied Taiwan Italy Design Up to 3600 Piece Per Minute Embossing Printing High Speed Automatic Napkin Machine.

 manufacturer of fully automatic napkin line

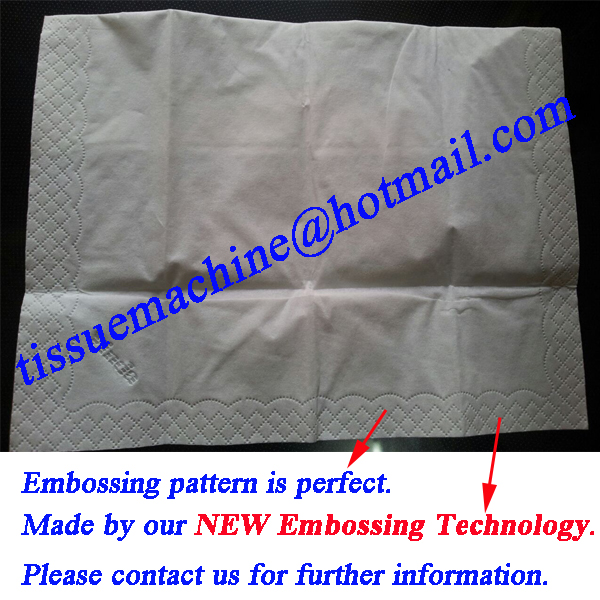

Below are embossing patterns made by the NEW Embossing Technology of 3 Decks Delivery Copied Taiwan Italy Design Up to 3600 Piece Per Minute Embossing Printing High Speed Automatic Napkin Machine.

automatic napkin folder

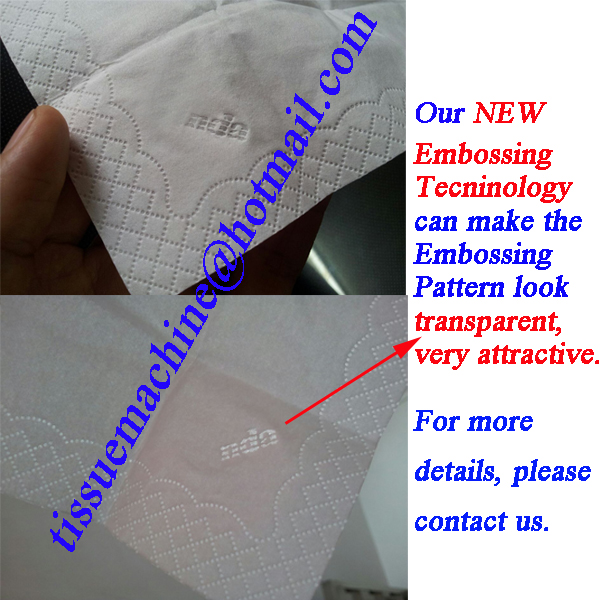

The embossing patterns made by the NEW Embossing Technology of 3 Decks Delivery Copied Taiwan Italy Design Up to 3600 Piece Per Minute Embossing Printing High Speed Automatic Napkin Machine. looks very attractive.

Auto transfer napkin machine




Folding type of our 3 Decks Delivery Copied Taiwan Italy Design Up to 3600 Piece Per Minute Embossing Printing High Speed Automatic Napkin Machinecan be any customized 1/4 fold, 1/6 fold, 1/8 fold or special fold. Please specify.

 napkin folding packaging machine







Below is 1/6 fold napkin made by our 3 Decks Delivery Copied Taiwan Italy Design Up to 3600 Piece Per Minute Embossing Printing High Speed Automatic Napkin Machine.

napkin tissue making machine







Multi colors printing napkin machines are available.
