China 20 years’ experience professional manufacturer of Lamination M W Four Five Six Folds Tissue Paper Hand Towel Interfolder Machine by ACE MACHINERY CO., LIMITED China. Can customize lamination or colors printing.


  • Product No.: MTM-240-6L

Details

M W Four Five Folds Paper Hand Towel Interfolder Machine

Detailed description of M W Four Five Folds Paper Hand Towel Tissue Interfolder Machine

Model:   MTM-240-6L M W Four Five Folds Paper Hand Towel Interfolder Machine
Speed: about 500-800 sheet/min/lane * 6lanes.
Used for: M W Four Folds Five Folds interfolded hand tissue paper towels on the same machine.
Raw material: 18-55gsm 2-ply or 1-ply virgin tissue or other recycled brown or kraft tissue or nonwoven or airlaid.
Jumbo roll size: 1260mm width x 1100 mm diameter. Other sizes available. Width can be up to 2500mm.
Towel open size: 240±2mm x 210mm. Other size 210x210mm, 250x250mm etc. available. Please specify.
Towel Folded size: 60±2mm x 210mm. The cutting size is adjustable
Folding types: 4 folds/ 5 Folds/ M fold/ Interfold vacuum fold.
Folding unit: Thickened Floor standing wallboard structure(Full steel plate) so that the machine is running at high speed without vibration.
Automatic counting unit.
Embossing unit:  1 set of steel-to-steel embossing unit. (Pattern provided by client)
Thickened Floor standing wallboard structure(Full steel plate)
Controlled by NEW design level-type cylinder
, not screws. Italy and Taiwan design.
Lamination system: Optional.
Jumbo Roll Stand:
With 1 back stand, controlled cushion cylinder
Web tension control
Automatic loading jumbo rolls.

Control system: Main motor controlled by inverter
Frequency speed control

Emergency stop if paper breaks
Vacuum pump for adsorption
Air pressure:0.5Mpa(buyer supply)

Power: 7.5KW main motor, 18.5KW vacuum pump.3-phase AC380V 50HZ or 3-phase 220V 60Hz, or customized.
Machine size: 6000x2500x1900mm.
Machine weight: about 3500kg.

Video below:

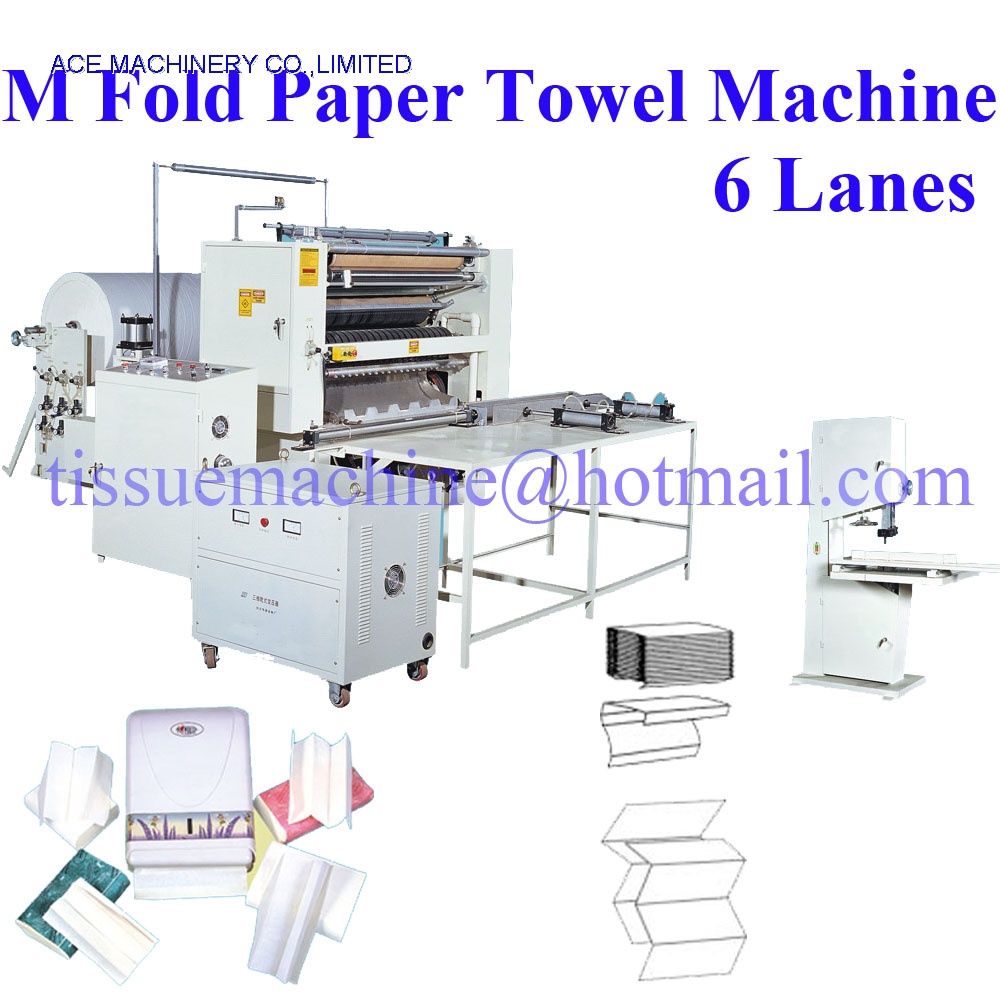

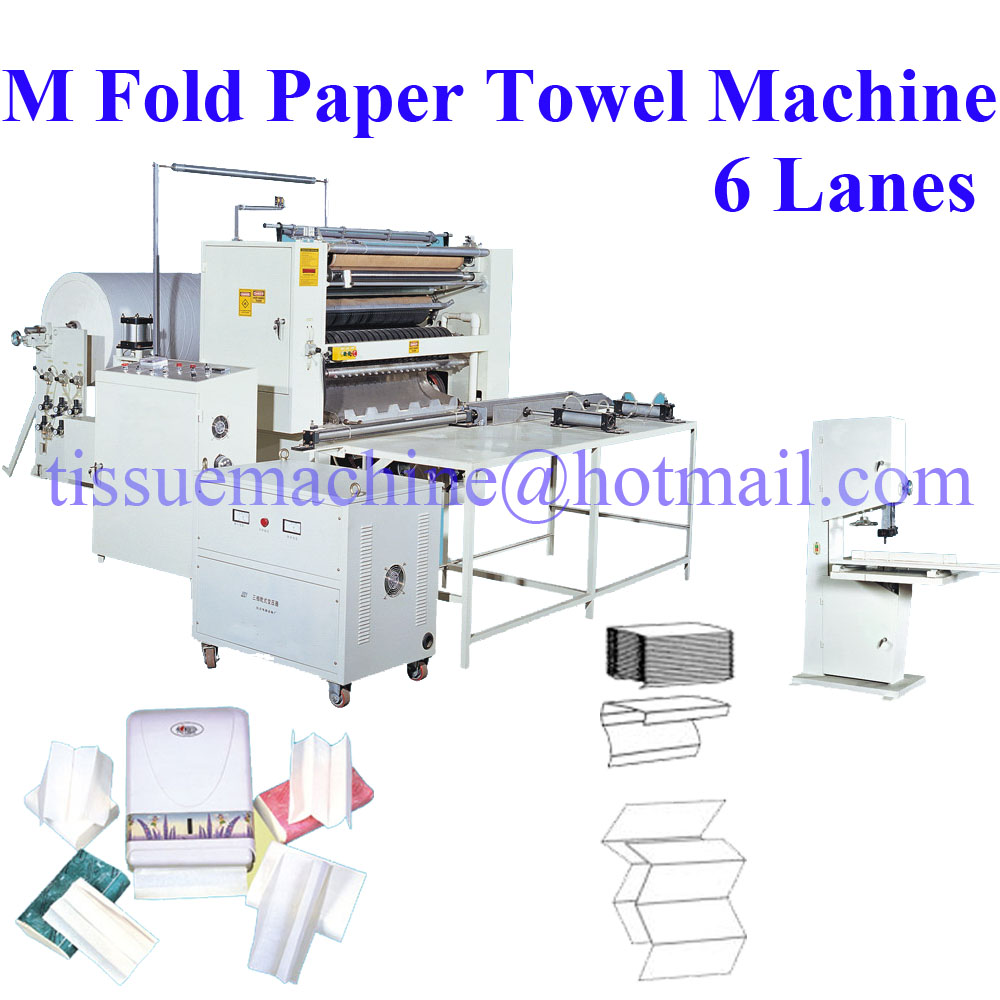

Overall view of Lamination M W Four Five Six Folds Tissue Paper Hand Towel Interfolder Machine







Overall view of  Lamination M W Four Five Six Folds Tissue Paper Hand Towel Interfolder Machine

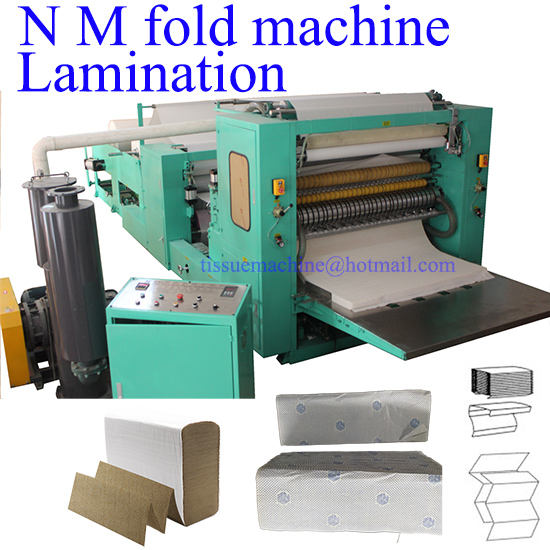

Our Lamination M W Four Five Six Folds Tissue Paper Hand Towel Interfolder Machine is with complete steel plate structure.

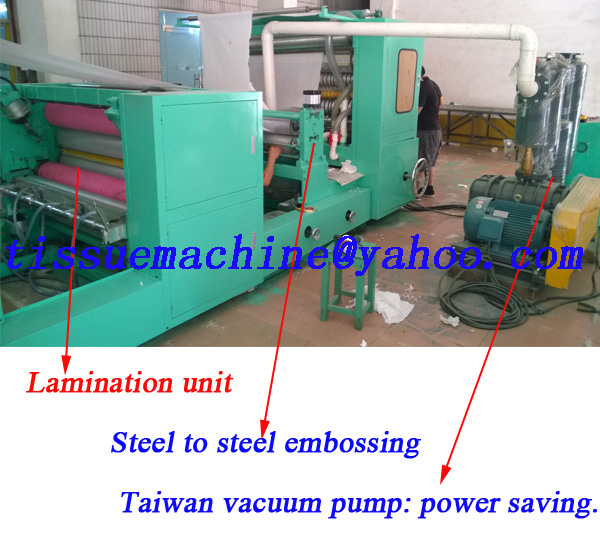

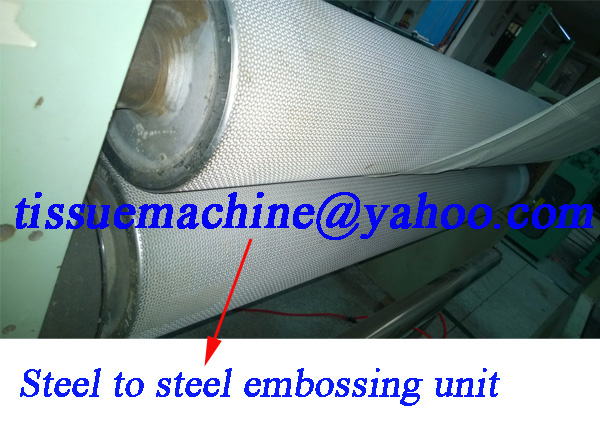

Our Lamination M W Four Five Six Folds Tissue Paper Hand Towel Interfolder Machine is with steel to steel embossing unit and Taiwan Vacuum Pump.

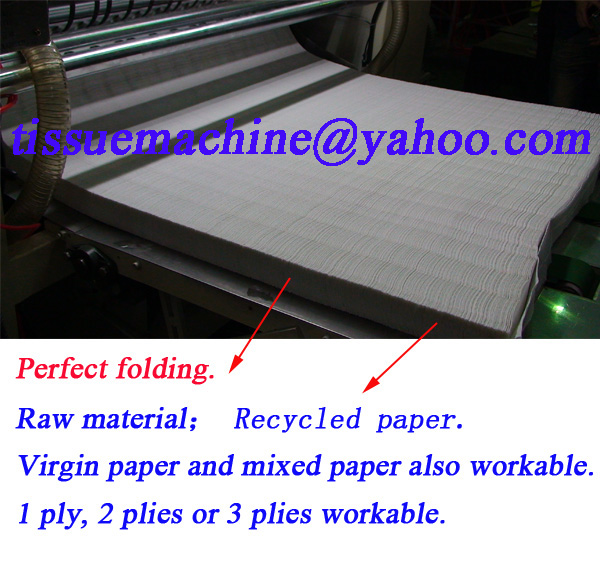

Perfect folding of our Lamination M W Four Five Six Folds Tissue Paper Hand Towel Interfolder Machine. The jumbo roll width is 1440mm for 6 lines output. The folding is still perfect while running at stable speed of 600-1000 sheet/min/line.

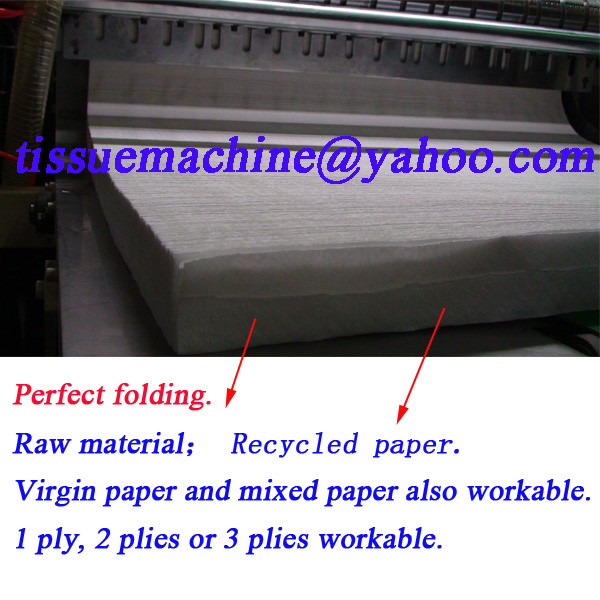

Our Lamination M W Four Five Six Folds Tissue Paper Hand Towel Interfolder Machine is able to work with 1,2 or 3 plies of virgin paper, mixed/blended pulp paper, recycled paper with different quality and 13-45gsm.

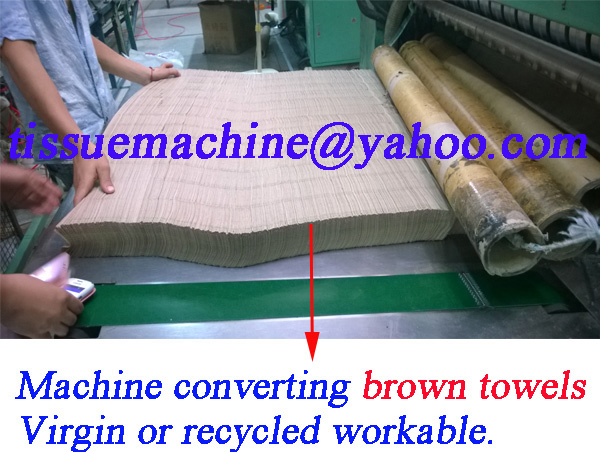

Our Lamination M W Four Five Six Folds Tissue Paper Hand Towel Interfolder Machine can work with Brown Towels.





Finished Brown Towels produced by our Lamination M W Four Five Six Folds Tissue Paper Hand Towel Interfolder Machine.

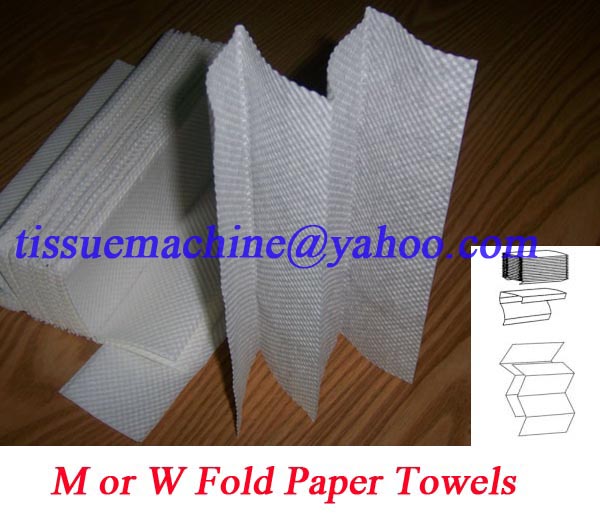

Folding types of our Lamination M W Four Five Six Folds Tissue Paper Hand Towel Interfolder Machine can be four folds, five folds, six folds, M fold, W fold, V+N folds and so on. Other folding types also available.

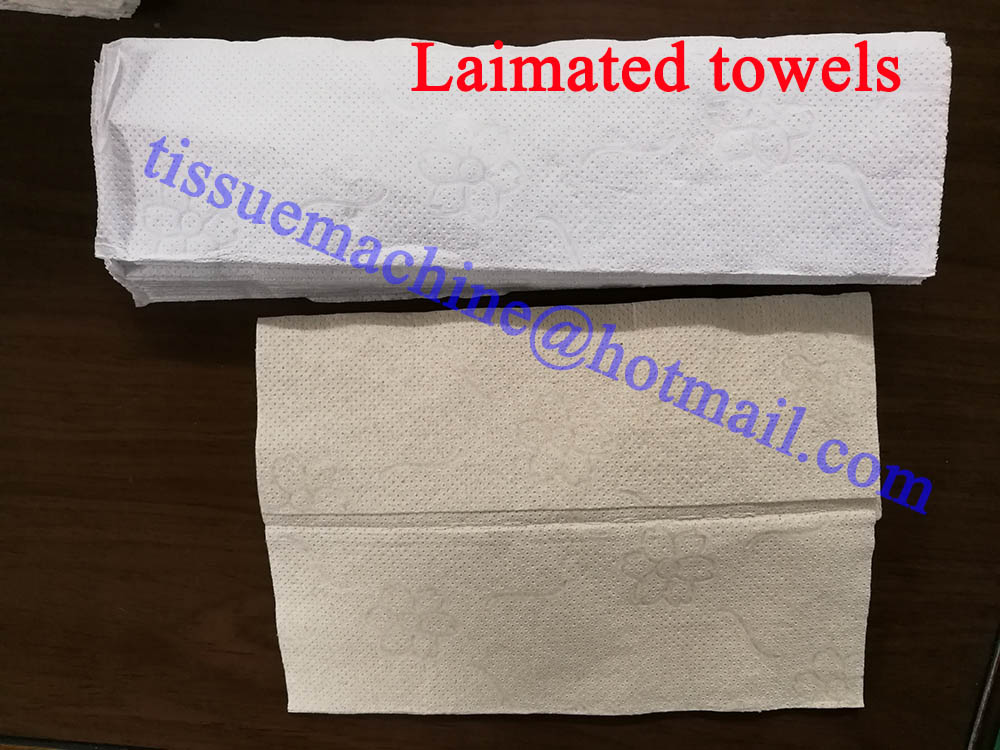

Laminated M Fold hand towels made by our Lamination M W Four Five Six Folds Tissue Paper Hand Towel Interfolder Machine.

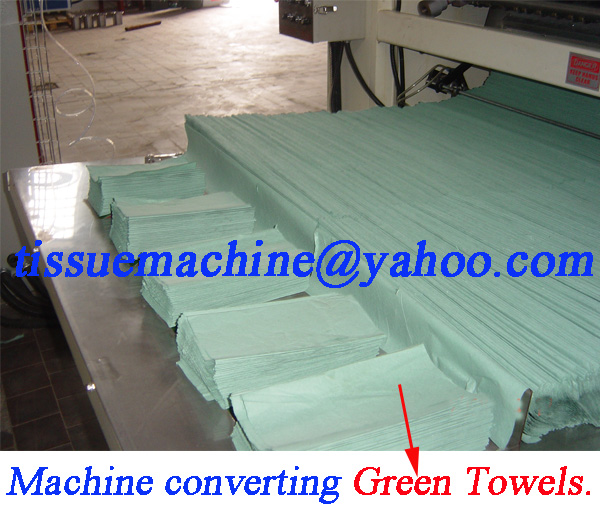

 Our Lamination M W Four Five Six Folds Tissue Paper Hand Towel Interfolder Machine can also convert Green Towels.

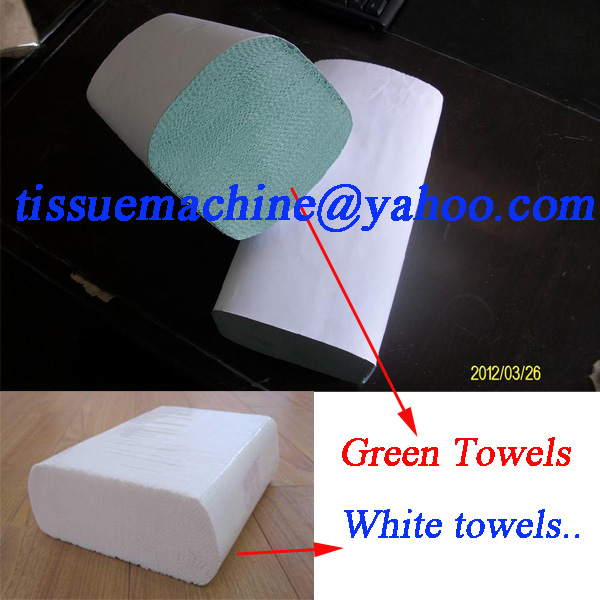

Green Fold towels made by our Lamination M W Four Five Six Folds Tissue Paper Hand Towel Interfolder Machine.

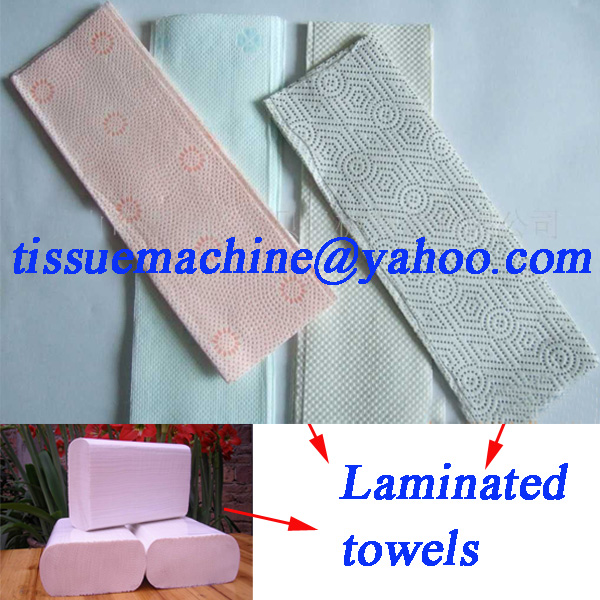

Laminated towels with colored glue made by our Lamination M W Four Five Six Folds Tissue Paper Hand Towel Interfolder Machine.

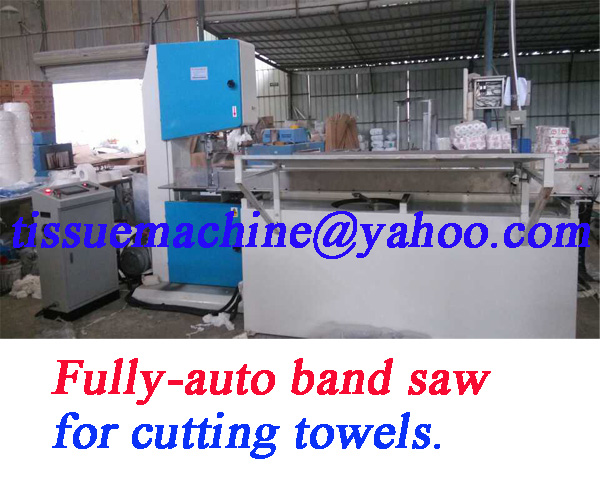

We have Fully-auto Band Saw to connect our Lamination M W Four Five Six Folds Tissue Paper Hand Towel Interfolder Machine.
