Facial Tissue V N Z Interfold Paper Hand Towel Log Saw Machine





FLS  Fully Automatic High Speed Tissue Log Saw Cutter

Main structure: single channel.

Applicable material: facial tissues/V fold hand towwel/Z fold hand towels/toilet rolls/kitchen roll.

Designed speed: 150 cut/min

Working speed: 80-140 cut/min

when cutting length 100mm, about 140 cut/min;

when cutting length 230mm, about 120 cut/min.

Infeed channel: With 1 piece of infeed conveyor 3 meters length.

Cutting delivery system: Independent servo control and driving.

Cutting sizes ranges:     L 60-300mm   adjustable.  Other sizes available, can be customized.

W 60-110mm    Can customize up to 140mm wide

H 20-120mm     Can customize up to 300mm high

Cutting tolerance length:  ±1mm

Cutting tolerance vertical:  ±1.5mm

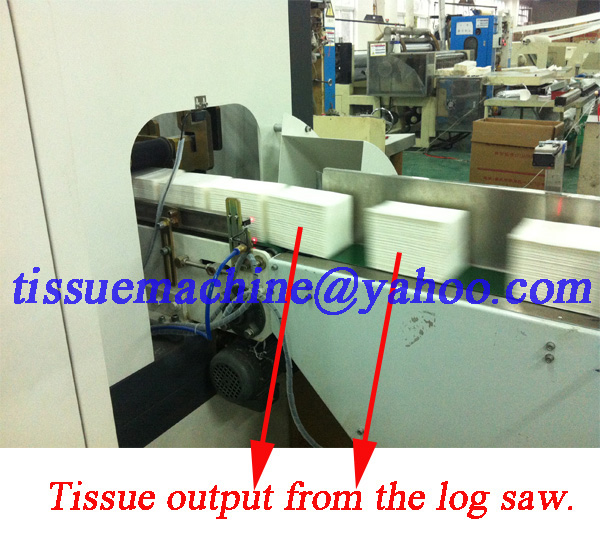

Output delivery: During the whole log saw cutting process, the tissues are pressed by Top timing belts + bottom timing belts to prevent the belts getting slippery and guarantee every cut accurate cutting. (But other company machines use flat belts which would definitely get slippery and no-accurate cutting.)

Adopt 2 servo motors to control the timing belts before the circular blade cutting and after the circular blade cutting .(But other companies’ machines use only one servo motor or NO servo motor, controlled by only inverter, which cannot guarantee accurate cutting.)

Circular blade outer diameter: 610mm

Blade grinding/sharpening system: Automatically and pneumatically grinding/sharpening, grinding/sharpening time and interval parameters can be set in the touch screen. For example, you can set it to sharpen for 1 seconds every 30 minutes or every 50 cuts.

Cutting system: 360° rotating cutting. (Not like other companies machines, the cutting system is only up-and-down cutting.)

Trim removal system: Automatically blew away by air. Trimmed size: 20-65mm.

Control system:

PLC programmed control,

Inverter for variable frequency speed control,

Touch screen for operation

Servo driving: adopt 2 servo motors to control the timing belts before the circular blade cutting and after the circular blade cutting .(But other companies’ machines use only one servo motor or NO servo motor, controlled by only inverter, which cannot guarantee accurate cutting.)

Air compressor: 4-8kg/cm2pa, supplied by customer.

Installed Power:  3phase 208v 60hz. total about 6.4kw

Servo system power: about 2 kw

Rotate motor power: about 2.2kw

Blade motor power: about 2.2kw

Machine weight: about 2T.

Machine dimension: about 5x1.9x1.95m  LxWxH.  Floor plan refer to below.



Brands for parts used for the machine.

Motor: Siemens (Germany)

JSCC motors for infeed conveyor. (Germany)

PLC: Siemens (Germany)

Touch screen: Siemens  (Germany)

Inverter: DELTA (Taiwan)

Relays: Weidmuller (Germany)

Sensors: Omron (Japan) or other international brands.

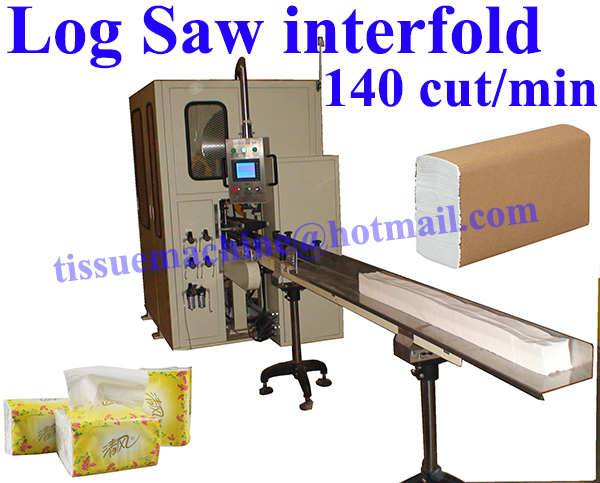

Picture of High Speed Tissue paper log saw



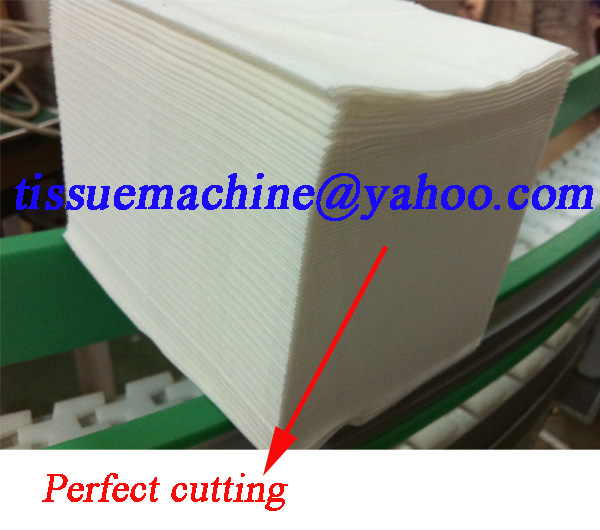

Log saw cutting machine for V fold/ Z Fold/ N fold hand towel



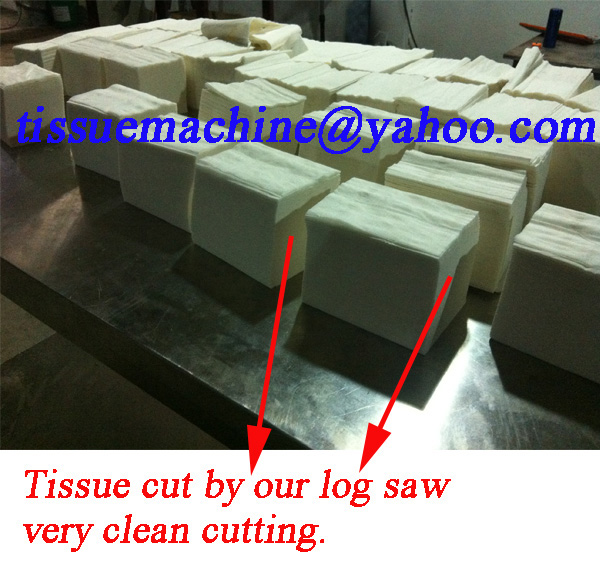

 Log saw machine for interfold Facial tissue


High Speed log saw for facial tissue/interfold pop up

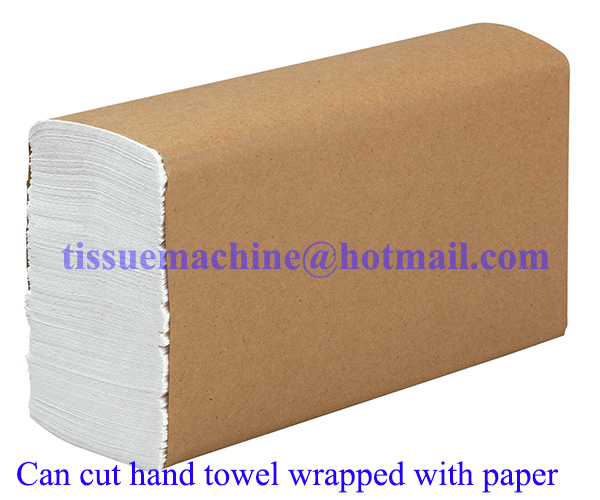

Log saw cut poly wrap or paper wrap interfold paper hand towel
