High Speed Automatic Two Lanes Facial Tissue Paper Log Saw Cutting Machine

Introduction:
This ACE-FLS-2L Automatic High Speed China Two Lanes Facial Tissue Paper Log Saw Cutting Machine can cut facial tissue paper, Z / V inter fold hand towels at very high speed of 200 cut/min/lane * two lanes. It is same good quality as Taiwan facial tissue paper log saw machine.
It can also cut the interfold napkins or hand towels wrapped with plastic sleeve or kraft paper.

Advantages of Autoamtic High Speed China Two Lanes Facial Tissue Paper Log Saw Cutting Machine
1- High speed up to 200 cut/min/lane * two lanes.
2- Multi functional: can cut facial tissue paper, v fold , Z fold inter fold hand towel, inter fold napkins etc.
3- Automatic.
4- Easy opetaion and maintenance.

Simple technical details of Automatic High Speed China Two Lanes Facial Tissue Paper Log Saw Cutting Machine as below.

Main structure:	double channels / double lanes.
Applicable material:	facial tissue paper V fold hand towel Z fold hand towel interfold napkin.
Designed speed:	200 cut/min
Cutting speed:	80-200 cut/min * 2 lanes, depends on tissue paper sizes, if cutting length >200mm, the speed will drop a little.
Infeed channel:	With 1 piece of infeed conveyor 3 meters length.
Cutting delivery system:	Independent servo control and servo driving.
Tissue Paper Cutting sizes ranges:	L 60-300mm   adjustable， other size, please specify. W 80-120mm  or customized H 15-100mm   other size, please specify.
Cutting tolerance length:	±1mm
Cutting tolerance vertical:	±1.5mm
Control system	PLC + HMI + Servo motor control
Circular blade diameter	610mm
Suplied electricity	3 phase 380v 50hz or 220v or 440v customized.
Machine power total	6.5KW
Machine size	about 2*1.6*2m   + infeed conveyor 3 meters

More technical parameters of Automatic High Speed China Two Lanes Facial Tissue Paper Log Saw Cutting Machine as below.

Output delivery: During the whole log saw cutting process, the tissues are pressed by Top belts + bottom belts to prevent the belts getting slippery and guarantee every cut accurate cutting.
Adopt servo motors to control the belts before the circular blade cutting and after the circular blade cutting.
Circular blade outer diameter: 610mm
Blade grinding/sharpening system: Automatically and pneumatically grinding/sharpening, grinding/sharpening time and interval parameters can be set in the touch screen. For example, you can set it to sharpen for 1 seconds every 30 minutes or every 50 cuts.
Cutting system: 360° continuous rotating cutting. (Not like other companies machines, the cutting system is only up-and-down cutting.)
Auto trim log head and log tail system: Automatically trim the tissue log head or log tail and blow them away by air. Trimmed size: 15-25mm.

Video of Automatic High Speed China Two Lanes Facial Tissue Paper Log Saw Cutting Machine for reference.

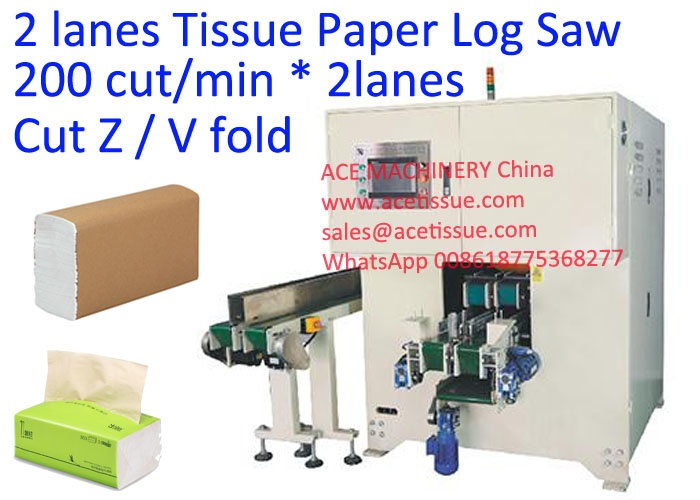

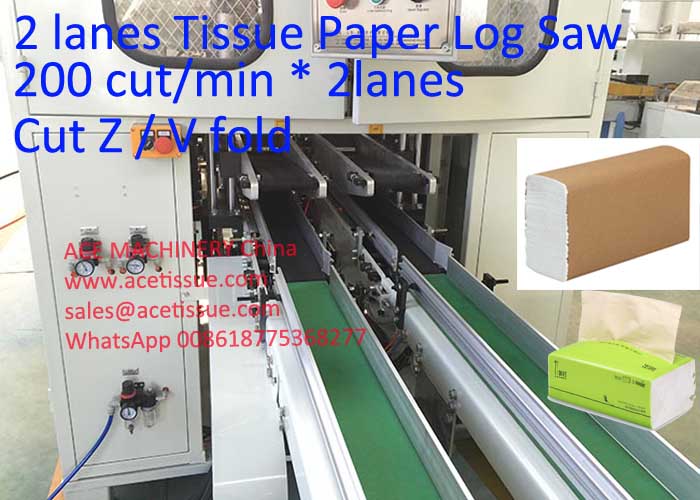

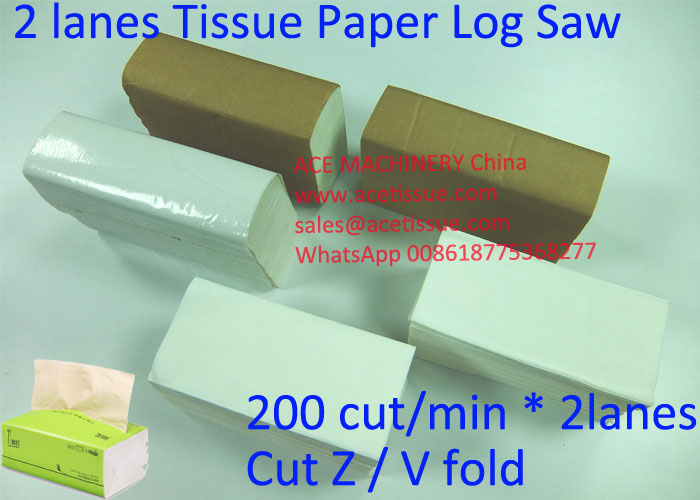

Below photos of Automatic High Speed China Two Lanes Facial Tissue Paper Log Saw Cutting Machine for reference.

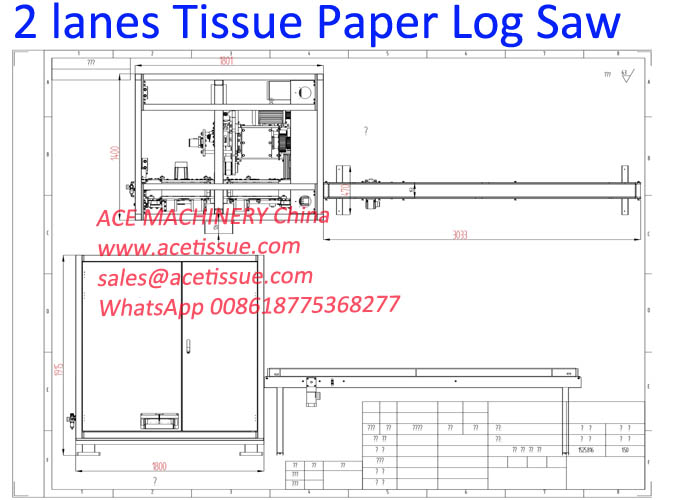

floor plan of this facial tissue paper log saw:



Control system:
PLC programmed control,
Inverter for variable frequency speed control,
Touch screen for operation
Servo driving: adopt servo motors to control the belts before the circular blade cutting and after the circular blade cutting .
Air compressor: 4-8kg/cm2pa, supplied by customer.
Installed Power:  3phase 380v 50hz. total about 6.4kw
Servo system power: about 2 kw
Rotate motor power: about 2.2kw
Blade motor power: about 2.2kw
Machine weight: about 2T.
Machine dimension: about 1.6x1.9x1.95m + infeed conveyor length 3meters.  LxWxH.  Floor plan refer to below.

Brands for parts used for the machine.
PLC: Panasonic  (Japan)
Touch screen: Panasonic  (Japan)
Inverter: DELTA (Taiwan China)
Relays: Weidmuller (Germany)
Sensors: Omron (Japan) or other international brands.
