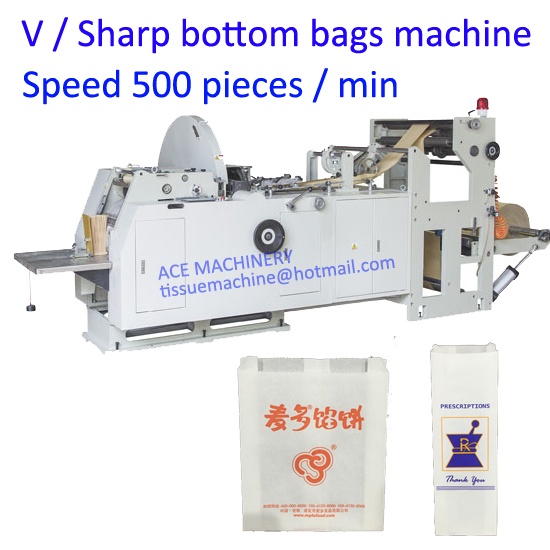

V Sharp Bottom Food Paper Bag Making Machine

Technical Parameter：

Type: PBM-V

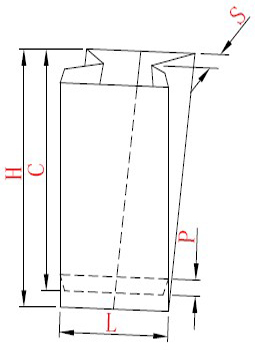

Cutting Length（C）:  150-460 mm

Bag Length（H）: 145-455 mm

Bag Width（L）: 70-280 mm

Gusset Depth（S）: 0-50 mm

Standard Flap（P）: 12-20 mm

Max.Speed: 400-500 pcs/min

Paper Thickness: 30-80 gsm

Paper Roll Width: 220-700 mm

Max.Roll Diameter: 1000 mm

Reel Inner Diameter: 76 mm

Total Power: 6 kw

Weight of Machine: 3000 kg

Overall Dimension(LxWxH): 4580×1650×1850 mm.



finished prodcuts of v sharp bottom paper bag machine.
