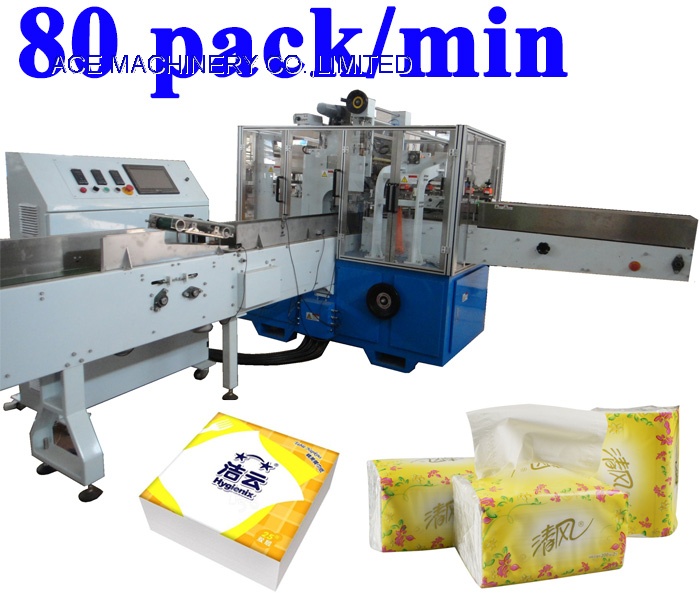

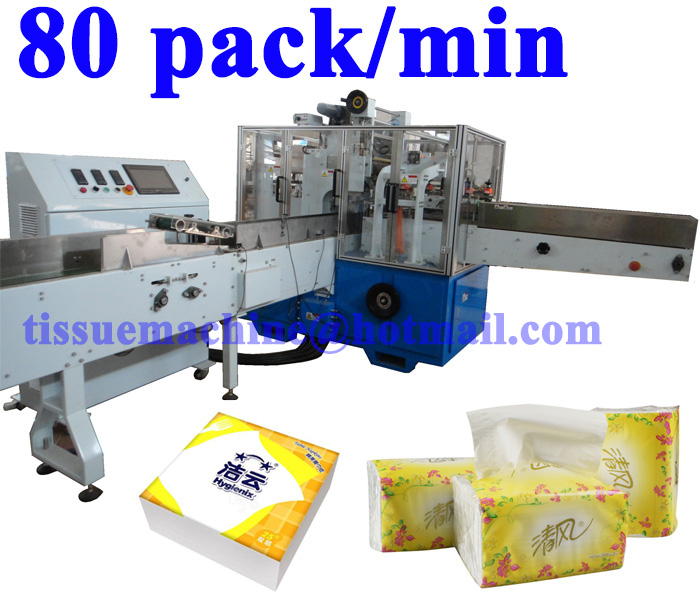

Fully Automatic Interfold Facial Tissue Paper Napkin Tissue Packaging Wrapping Machine
Technical parameters.
1. Packing material: CPP with thickness 40 - 45 microns Other requirements to be specified.
2. Packing film size：MAXφ300mm，width 400-600mm，thickness 40 - 45 microns.

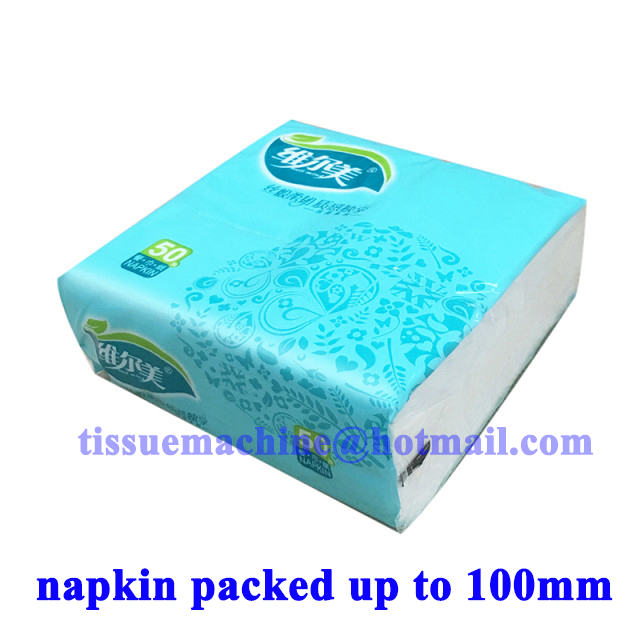

3. Tissue packing size：L100-200mm * W100-140mm * H40-100mm. Other sizes to be specified.
4. The packing size can be changed from one fixed size to another by changing the packing mould within specification above.
5. Various packing size can be changed quickly among different tissue sizes(need different moulds).
6. The machine is equipped with 2 different moulds for 2 sizes.
7. Sealing type: hot sealing and envelope type.
8. Control:
PLC programmed control, Siemens or Mitsubishi
Inverter for variable frequency speed control,
Touch screen for operation
Servo motor control.
9. The packing machine can be connected to the log saw to form an automatic production line, saving much laboring cost and increase the production efficiency.
10. The whole machine adopts stepless frequency conversion controlling, touching screen and PLC.
11. Main motor Controlled by timing Frequency conversion; With touch screen for data setting.
12. Equipped with automatic lubrication system. You can set the machine lubrication interval and lubrication time.
13. Magic eye to check and control the material and packing film system;
14. Power: 5.4Kw. Heating power:3.6Kw. 3phase AC380V 50HZ.
15. Working noise: ≤78db
16. air pressure: 0.5Mpa（buyer supplier）；
17. Packing speed: 50-70 packs/min..
18. Machine size: L3680 x W5885 x H1925mm
19. Machine weight: 3500kg
Brands of parts used for the machine
PLC: Siemens or Mitsubishi
Screen: Weinview (Taiwan)
Inverter: DELTA (Taiwan)
Relays: Schneider (France) + Omron (Japan)
Sensors: Omron (Japan) or other international brands.
