Non Stop Bathroom Toilet Hygienic Tissue Paper Kitchen Towel Roll Rewinder Machine Production Line with Lamination Glue
|
Model |
TKL-N300 Continuous Toilet Paper and Kitchen Towel Production Line |
|
Parent roll size |
1500mm diameter x 1200-3500mm width or customized. |
|
Finished roll size |
Diameter adjustable, maximum 150mm Length/Width adjustable. |
|
Speed |
0-300 m/min Non-stop or customized |
|
Core diameter |
76mm |
|
Control |
PLC Control Human-Machine Interface (Touch screen) Inverter speed control |
|
Embosser |
steel to rubber (1 set) controlled by level-type cylinders, not traditional screws. Embossing tension is adjustable(micro adjustment.) Embossing pattern can be any company LOGO, brand name, flower etc, provided by client, or recommended by us. Steel to steel and steel to paper are optional. |
|
Lamination |
With point-to-point embossing and lamiantion system. Similar to Italy design. |
|
Features |
Pneumatic loading jumbo rolls. Automatic core feeding unit Automatic counting unit Automatic perforating unit(perforating distance is adjustable) Outer diameter of finished rolls is adjustable by cylinder Automatic pushing out finished logs by cylinder Automatic tail cutter and sealer tail (Glue) Emergency stop when paper breaks |
|
Perforation unit |
Perforating distance is adjustable. Controlled by cylinders, not screw |
|
Machine size |
10000*5000*3000 mm depends on jumbo roll width. |
|
Weight |
5000 KG |
|
Photos and videos available. Please contact us. |
|

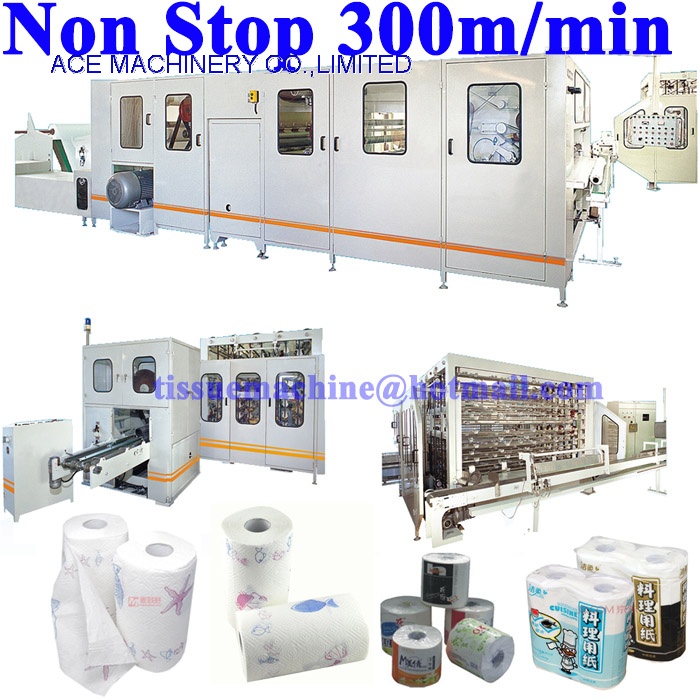

Overall view of Lamination High Speed Automatic Continuous Kitchen Towel Making Machine.
Finished logs made by our Lamination High Speed Automatic Continuous Kitchen Towel Making Machine will be cut by semi-auto or fully-auto cutting machines.
Finished toilet rolls made by our Lamination High Speed Automatic Continuous Kitchen Towel Making Machine.
Finally packed toilet rolls made by our Lamination High Speed Automatic Continuous Kitchen Towel Making Machine.
We also have another model of Lamination High Speed Automatic Continuous Kitchen Towel Making Machine which can produce both toilet rolls and kitchen towels with lamination as shown below.
Finished Laminated Kichen Towels made by our Lamination High Speed Automatic Continuous Kitchen Towel Making Machine.
Finished Laminated Kitchen Towels produced by our Lamination High Speed Automatic Continuous Kitchen Towel Making Machine.
Finished Kitchen Towel with lamination and color printing made by our Lamination High Speed Automatic Continuous Kitchen Towel Making Machine.
Final packed kitchen towels made by our Lamination High Speed Automatic Continuous Kitchen Towel Making Machine.
