China 20 years’ experience professional manufacturer of JRT Jumbo Tissue Industrial Hand Paper Towel Maxi Roll Machine with Slitter Rewinder make Color Printing Nonwoven or Hand Paper Towel Rolls. Can customize lamination or colors printing.


  • Product No.: IRM
  • Price: Negotiable

Details

High Speed Automatic Embossing Color Printing Jumbo Roll Tissue Slitting Rewinding Machine



Technical parameters.

Machine model

1092

1575

2000

2200

2400

2600

2800

Other sizes to be specified.

Jumbo roll width(mm)

1300

1750

1950

2150

2350

2550

2750

Jumbo roll diameter

≤1200mm. Other size to be specified.

Inner core Diameter

3”(76mm)

Raw Material

13-22 g/m2 for 2 plies, 18-40 g/m2 for single ply Tissue/Airlaid/Nonwoven.

Other g/m2 to be customized.

Finished Roll Diameter

Max. Φ400mm, adjustable.

Finished Roll Width

Adjustable 90, 95, 100, 190, 200mm etc.

Speed

160-200m/min, depending on paper quality, gsm and worker’s operation.

Rewind Section

Pneumatic expanding shaft rewinding.

Perforating Section

Total 4 pcs of spiral perforating blades, 2 baldes can be removed if you want big size.

Perforating distance adjustable, 90~160mm if 4 blades, 180~320mm if 2 blades,

Pneumatic control

Unwinder Section

2 unwinders.

Automatic loading jumbo roll pneumatically.

With wide flat belt driven.

With tension system manually adjusted by cone pulley(Motor driving optional.)

Embossing section

Steel to rubber embossing unit.

Pneumatic system control. Controlled by cylinders.

With felt oil wiper for removing static electricity, tissue wastes, and dusts from the rollers.

Tension system

Manually adjusted by cone pulley or speed controller.

Counting system

Pneumatic counting. How many sheets per roll or how big diameter per roll.

Control system

Frequency speed control (inverter control)

JOG function

Emergency stop function

Auto stop if paper breaks.

Optical sensor detecting

With bell alarming system when machine starts running.

Installed Power

4.5-15KW for main motor depends on paper width, 3phase 380V 50hz or customized.

Air Pressure

0.5Mpa(prepared by the customer).

Optional Items

Embossing Section

Steel to steel or steel to paper.

Edge embossing units.

Calendaring Section

Steel to steel or steel to rubber.

Lamination system

Nested to nested lamination

Point to point lamination

Printing Section

1-4 colors flexographic printing

Water-based ink printing

Ceramic anilox.

Drying system.

Closed printing system.

Other requirements to be customized.

          Video & pictures available. Please contact email: tissuemachine@yahoo.com

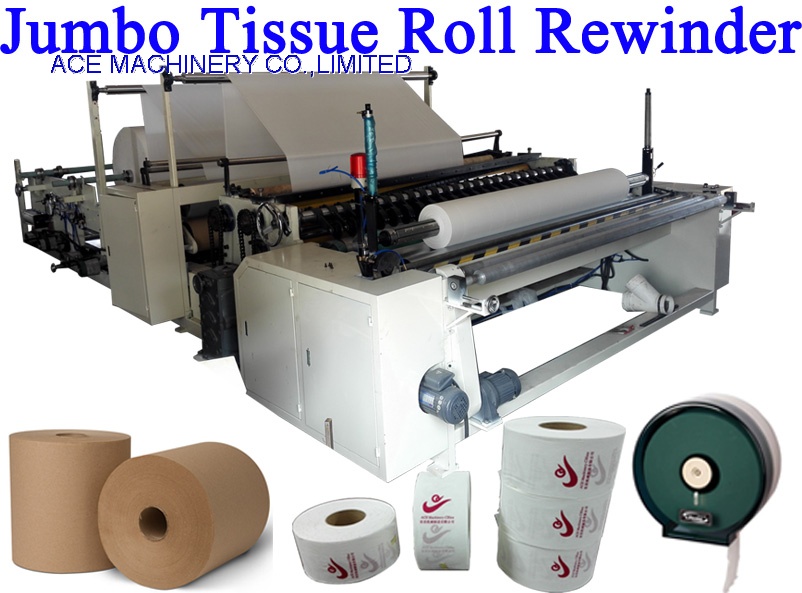

Overall view of High Speed Automatic Embossing Color Printing Jumbo Roll Tissue Slitting Rewinding Machine.

jumbo roll tissue machine

 jumbo roll tissue machine

Finished rolls side trimming suction system of our High Speed Automatic Embossing Color Printing Jumbo Roll Tissue Slitting Rewinding Machine.

jumbo roll tissue machine



Color Printing System of our High Speed Automatic Embossing Color Printing Jumbo Roll Tissue Slitting Rewinding Machine.

jumbo roll tissue machine



Finished color printed jumbo roll tissues made by our High Speed Automatic Embossing Color Printing Jumbo Roll Tissue Slitting Rewinding Machine.

 jumbo roll tissue machine



Finished color printed toilet roll logs made by ourHigh Speed Automatic Embossing Color Printing Jumbo Roll Tissue Slitting Rewinding Machine.

jumbo roll tissue machine

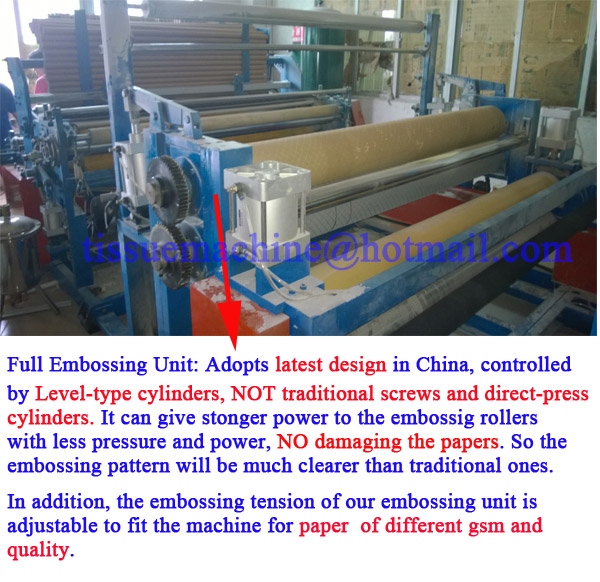

Full embossing system of ourHigh Speed Automatic Embossing Color Printing Jumbo Roll Tissue Slitting Rewinding Machine.

jumbo roll tissue machine



Edge embossing system NEW design of our High Speed Automatic Embossing Color Printing Jumbo Roll Tissue Slitting Rewinding Machine.

jumbo roll tissue machine

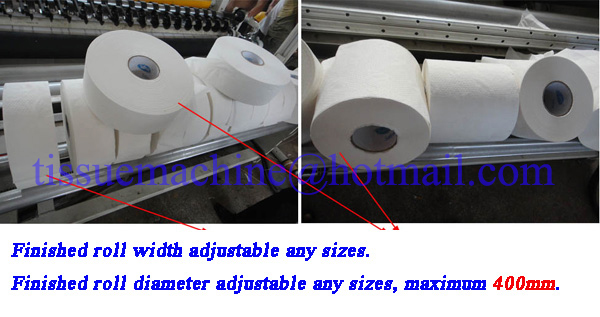

Finished rolls size is adjustable made by our High Speed Automatic Embossing Color Printing Jumbo Roll Tissue Slitting Rewinding Machine.



Finished erfect cutting rolls with cores and no cores made by our High Speed Automatic Embossing Color Printing Jumbo Roll Tissue Slitting Rewinding Machine.

jumbo roll tissue machine





Finished rolls ofHigh Speed Automatic Embossing Color Printing Jumbo Roll Tissue Slitting Rewinding Machine.

jumbo roll tissue machine

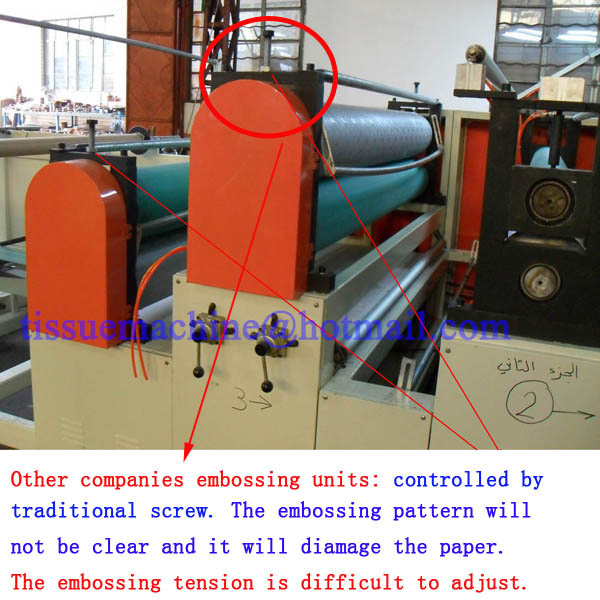

Embossing unit of other companies' Machine.



Embossing unit of our High Speed Automatic Embossing Color Printing Jumbo Roll Tissue Slitting Rewinding Machine.

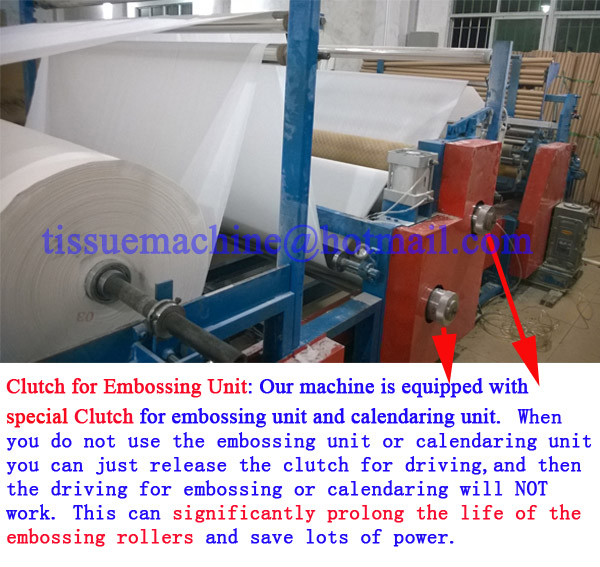

Our High Speed Automatic Embossing Color Printing Jumbo Roll Tissue Slitting Rewinding Machine is with clutch for embossing unit which can significantly prolong the life of embossing unit and save power.

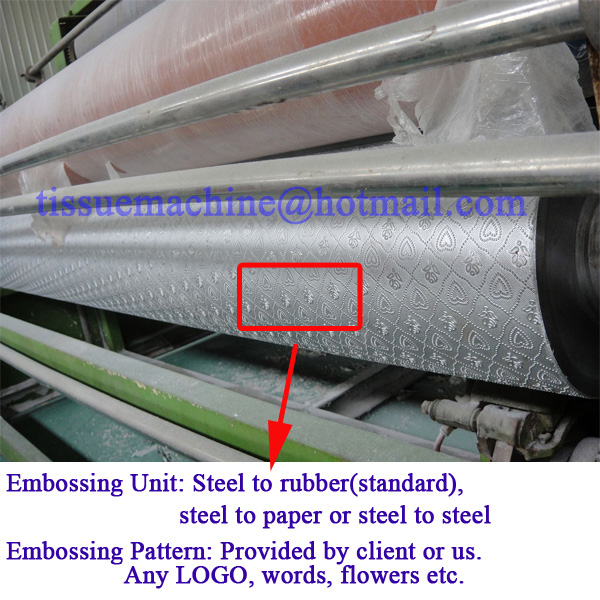

Embossing pattern of our High Speed Automatic Embossing Color Printing Jumbo Roll Tissue Slitting Rewinding Machine.
