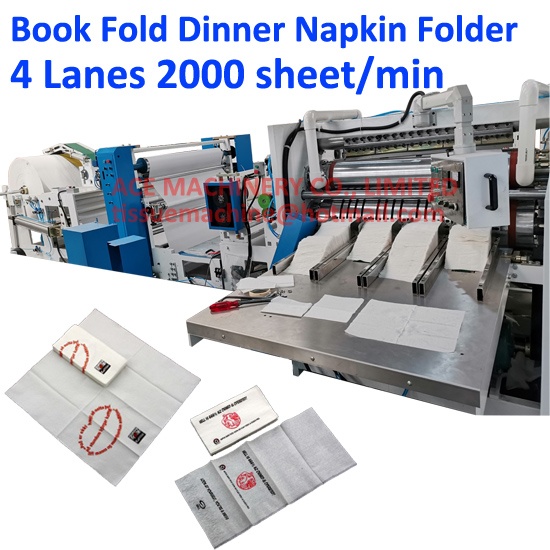

ACE is China Manufacturers of 4 Lanes high speed 1/8 book fold dinner Napkin Folding Machine 2000 pc/min with Taiwan Technology. It is the best and fastest vacuum type dinner napkin folder in China now.


  • Product No.: ACE-DNM-4L

Details

 China manufacturers of high speed dinner napkin folder

Below is video of our high speed dinner napkin machine for your reference. Or please check out this video link to watch the video.  Youtube: https://youtu.be/DnEr9oEloHM





Technical parameter:   Please check out this link to find out other high speed tissue paper napkin machines with Taiwan technology.

A. Jumbo roll stand

1.Parent roll specification: 16-35g/m2 1-ply; 12-20gsm 2 plies tissue paper. Others to be customized.

2.Parent roll size: ≤Φ2000 x 60” about 1524mm ( 15” * 4lanes = 60” or 381mm * 4lanes = 1524mm).  Diameter x Width

3.Core inner diameter: 76mm

 dinner napkin machine

B. Feeding Section

1. With One jumbo roll stand;

2.Pneumatic cylinder control

3. Stepless adjusting speed to control web-tension of paper.

4. Web tension is adjustable by hand wheel. Or tension adjustment.

5. With pneumatic system to automatically load jumbo rolls.

6. Floor-standing thickened wallboard steel frame structure to ensure high speed running less vibration.

7. Use Japan NSK bearings for main rollers.

Equipped with automatic web tension system.

 dinner napkin machine in China

C. Embossing Section

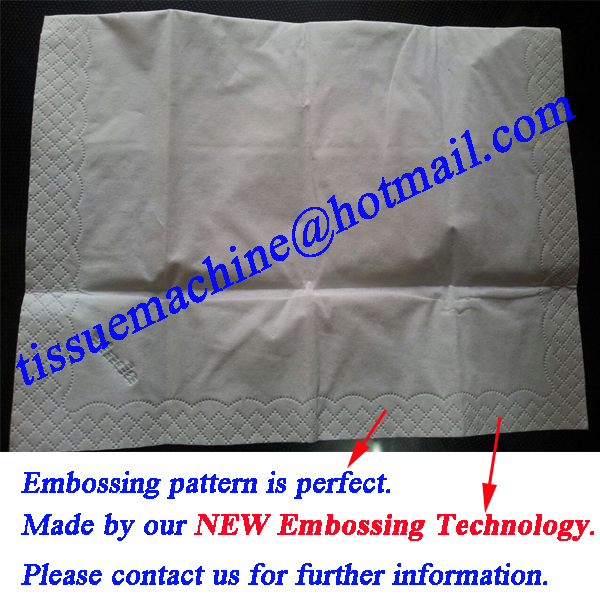

1. With one set of steel to paper embossing unit. (Embossing pattern provided by client or recommend by us)

2. Mechanical press type or pneumatic control.

3. Floor-standing thickened wallboard steel frame structure to ensure high speed running less vibration.

4. Use Japan NSK bearings for main rollers.

 high speed dinner napkin folding machine

D. Printing Section (advanced design copied Italy technology.)

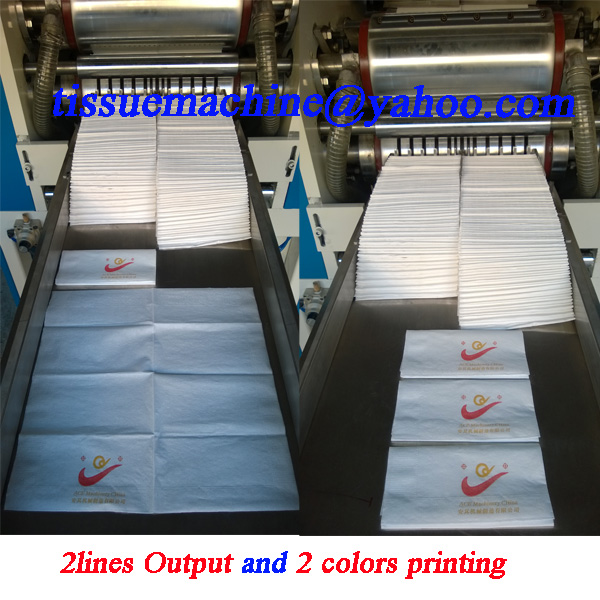

1. With 2 colors flexo-graphic printer section.

2. Closed chamber printing system, equipped with doctor blades to ensure high quality printing.

3. Printing unit with driven by timing belts to make printing more precise.

4. Simple and easy adjustment of horizontal and longitudinal registration by turning hand wheel.

5. With automatic printing roller disconnection device during machine stop. If the machine stops, the roller will automatically disconnect with the printing unit, controlled by pneumatic system.

6. The printing plate roller can be adjustable or disassembled from the printing unit, much easier for the operator to attach the printing rubber plates or clean the roller.

7. With printing ink reservoir for reserve dropping ink and avoid ink dropping on machine or place to keep environment clean.

8. Floor-standing thickened wallboard steel frame structure to ensure high speed running less vibration.

9. Use Japan NSK bearings for main rollers.



E. Folding Section

1.Final napkin products

Open napkin size:   16” x 15”  about 406x381mm

Folded napkin size:  4”x 7.5”   about 102x190mm

Fixed cutoff size: 16”, about 406mm.

2. Folder type: 1/8 fold, book fold and vacuum fold type.

3. Synchronizer for feeding paper

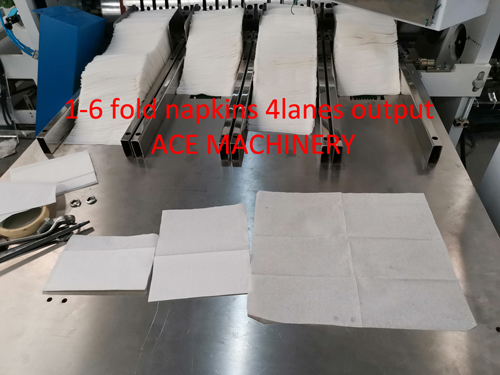

4. With 4 lanes delivery.  (single lane machine is available.)

5. Machine speed: about 400-500 piece/min/lane x 4lanes = 1600-2000 pc/min, depending on napkin size, paper quality, gsm and workers operation etc..

6. With automatic counting unit. With tissue pop up every count.

7. Can be equipped with automatic transfer system to transfer the napkins to the conveyor of the packaging machine to make it complete dinner napkin production line.



F. Control system

1. With JOG function, for easy threading the paper through the embossing unit, printing unit etc.

2. With emergency stop function. You can stop the machine in any cases of emergency.

3. With auto sensors for detecting paper breaks or used up. Machine will automatically stop if paper breaks or used up.

4. Famous brand motor.

5. Power: about 11kw for main motor, 15KW for the pump. (3-phase 380V 50Hz or customized)

6. Pressure: 0.5MPa.

7. Machine size: 6x2x1.7(M)

8. Weight: about 4500 kg
