Interfold L Fold Dispenser Tissue Paper Napkin Folding Machine with 2 Colors Printing

Interfold L Fold Dispenser Tissue Paper Napkin Folding Machine with 2 Colors Printing
  • Interfold L Fold Dispenser Tissue Paper Napkin Folding Machine with 2 Colors Printing
  • Interfold L Fold Dispenser Tissue Paper Napkin Folding Machine with 2 Colors Printing
  • Interfold L Fold Dispenser Tissue Paper Napkin Folding Machine with 2 Colors Printing
  • Interfold L Fold Dispenser Tissue Paper Napkin Folding Machine with 2 Colors Printing

China 20 years’ experience professional manufacturer of 1400 sheet/min Interfold L Fold Dispenser Paper Napkin Machine Folding Tissue with 2 Colors Printing Tall Low Side Fold by ACE MACHINERY CO., LIMITED can with lamination.


  • Product No.: LNM-2L

Details

Copied Italy Design Embossing Printing Automatic High Speed Dispenser Napkin Machine


Model No.

LNM-2L

Output type

2 Lanes output

2lines more lines output available.

Folding speed

700 piece/min/line, depending on the paper quality and napkin size.

If 2lines output, capacity will double.

Raw paper

13-20g/m2 2-ply, 20-45g/m2 1-ply, wooden pulp paper or others.

Other sizes please specify.

Jumbo roll size

170mm x Φ1200mm  (Depending on your napkin size, or customized)

Napkin unfolded size

170x170mm.   Other size can be Customized.

Napkin folded size

85x120mm.    One size is fixed.  One napkin size is adjustable, decided by the paper roll width.

Folding type

Vacuum folding and 1/4 fold.

Other folding types available.

Folding unit

With folding fingers.

With web tension control system.

Embossing unit

1- Steel to paper(wool), Male to female.  (Steel to steel is available.)

2- Embossing pattern can be any LOGO, brand name, flowers etc.

3- Embossing pattern can be customized by client or recommended by us

4- Controlled by screws, mechanical pressing type. Cylinder type is optional.

Printing unit

1- Flexo printing type.

2- Printing colors customized up to 4 colors.

3- Printing Logo is changeable. You just need to change the Printing Rubber only.

4- Annilox printing roll for printing.

5- Printing roll is adjustable flexibly.

Tension control

Speedless Tension control  unit to fit the machine for paper of different quaity and different gsm.

Calendar unit

Make the napkin softer and better for printing.

Counting

Automatic counting unit

Emergent stop

Emergent stop unit to inspect any paper breaks, paper jams.

Paper feeding

Synchronizer for feeding paper

Automatic loading jumbo rolls.

Power

5Kw (3-phase AC380V 50Hz or customized)

Machine size

6x2x2m.

Weight

3000KG

Videos and photos available.

 Below Video for your reference.


Below are photos of our Copied Italy Design Embossing Printing Automatic High Speed Dispenser Napkin Machine. for your reference.

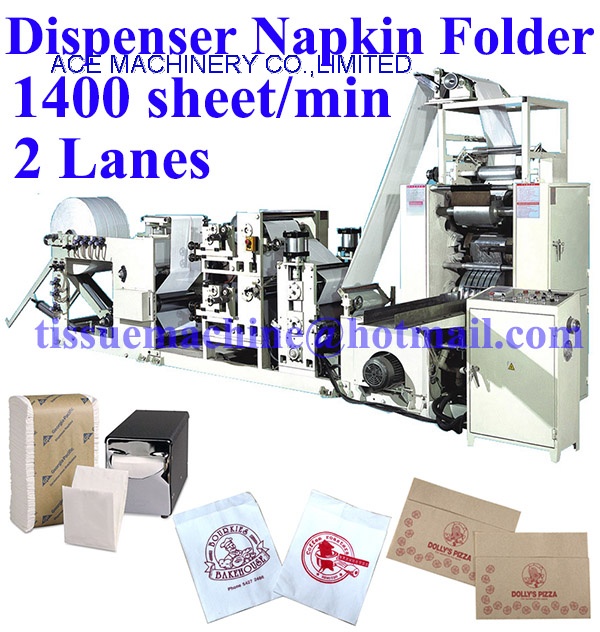

Overview of our Copied Italy Design Embossing Printing Automatic High Speed Dispenser Napkin Machine

printing dispenser napkin machine

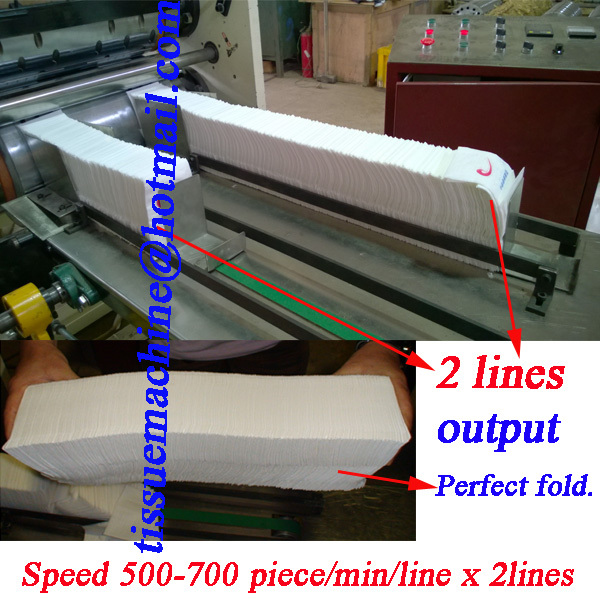

Our  Copied Italy Design Embossing Printing Automatic High Speed Dispenser Napkin Machine can be with 1 or 2 lines output production or more, with perfect folding.

dispenser napkin folding printing machine

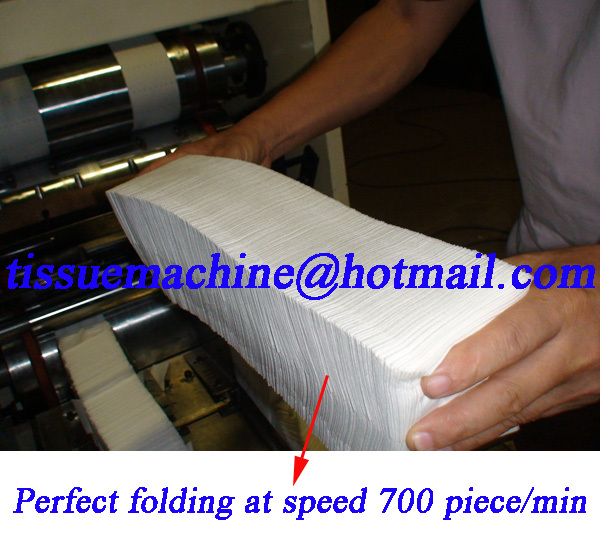

Perfect folding even the machine is running at 700 piece/min/line of our Copied Italy Design Embossing Printing Automatic High Speed Dispenser Napkin Machine.

 automatic dispenser napkin machine

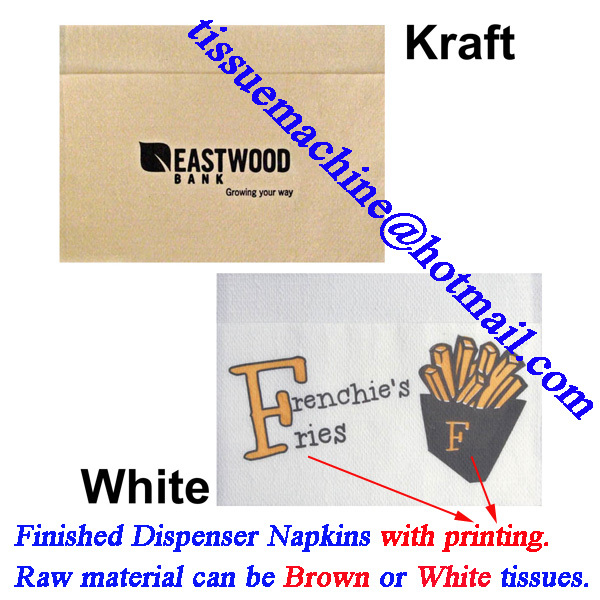

Colors printed Dispenser Napkins Brown Kraft or White produced by our Copied Italy Design Embossing Printing Automatic High Speed Dispenser Napkin Machine.

dispenser napkin machine in China

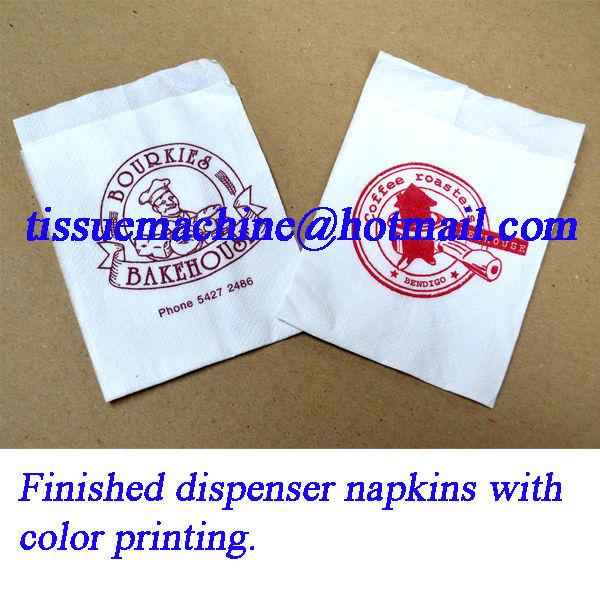

White Dispenser Napkins with color printing produced by our Copied Italy Design Embossing Printing Automatic High Speed Dispenser Napkin Machine.

 dispenser napkin machine with 2 colors printing

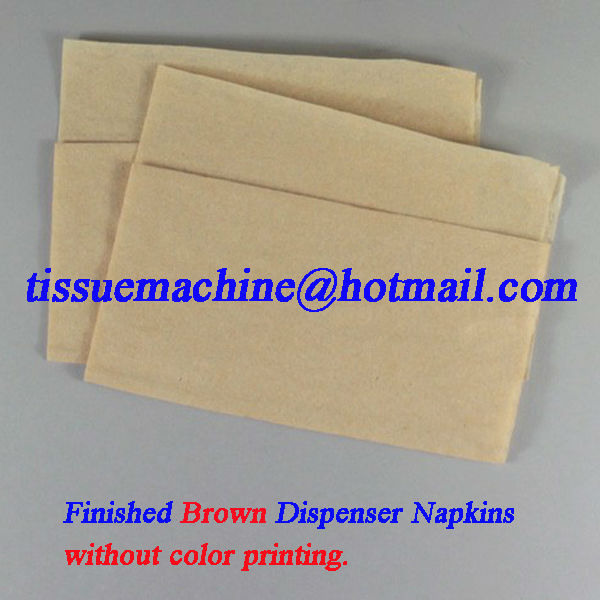

Brown Dispenser Napkins without color printing made by our Copied Italy Design Embossing Printing Automatic High Speed Dispenser Napkin Machine. Standard is steel to paper. Other types are optional.

 high speed dispenser napkin machine








White Dispenser Napkins without Color Printing made y our Copied Italy Design Embossing Printing Automatic High Speed Dispenser Napkin Machine.

 embossing dispenser napkin machine

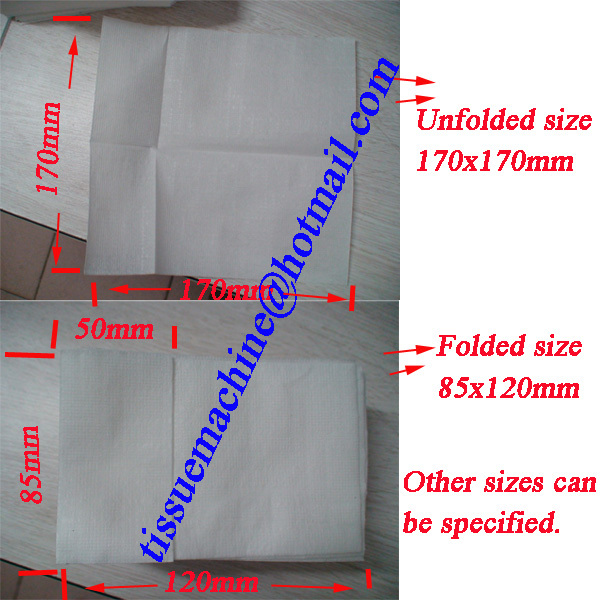

Folding type 1/4 folded Dispenser Napkins produced by our Copied Italy Design Embossing Printing Automatic High Speed Dispenser Napkin Machine.  Normally for 1/4 folding type, unfolded size is 170x1700mm and folded size is 85x120mm, as shown below. Other sizes can be customized.

dispenser paper napkin machine








Perfect folding of 1/4 folded Dispenser Napkins made by our Copied Italy Design Embossing Printing Automatic High Speed Dispenser Napkin Machine.

2 lanes dispenser napkin machine






Folding type 1/6 fold Dispenser Napkins made by our Copied Italy Design Embossing Printing Automatic High Speed Dispenser Napkin Machine.

 l fold dispenser napkin machine









Folding type another 1/6 fold Dispenser Napkins made by our Copied Italy Design Embossing Printing Automatic High Speed Dispenser Napkin Machine.

tall fold dispenser napkin machine







Folding type other folding Dispenser Napkins can be made by Copied Italy Design Embossing Printing Automatic High Speed Dispenser Napkin Machine.

 dispenser napkin converting machine

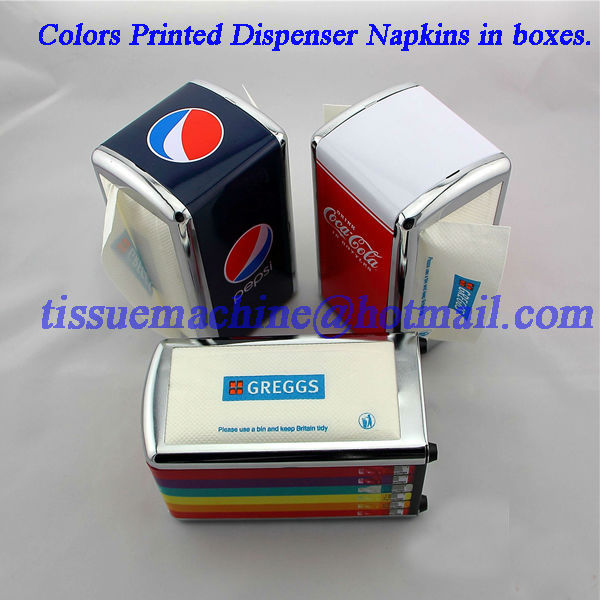

Finished Color Printed Dispenser Napkins put in the box made by our Copied Italy Design Embossing Printing Automatic High Speed Dispenser Napkin Machine.

 dispenser paper napkin folding machine





Finished plain Dispenser Napkins put in the box made by our Copied Italy Design Embossing Printing Automatic High Speed Dispenser Napkin Machine.

 dispenser napkin machine
