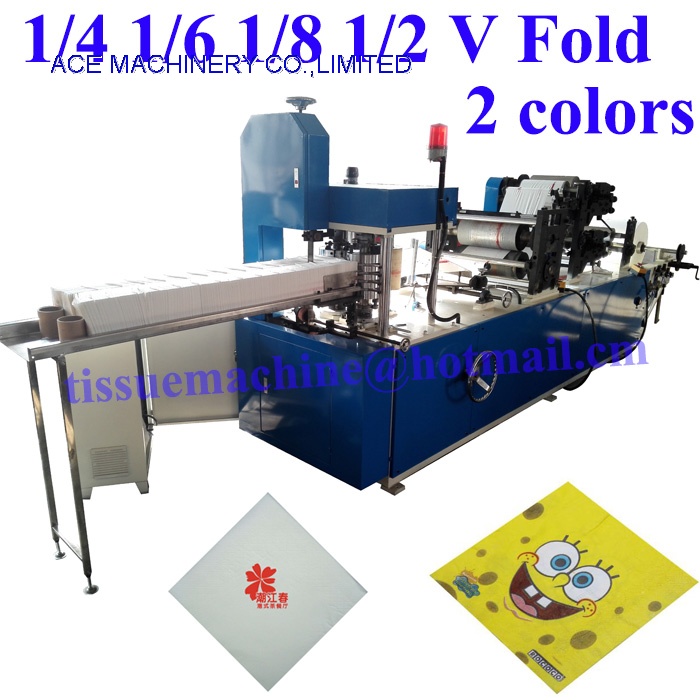

China Paper Napkin Machine with 2 colors printing

Technical parameters as below

table napkin machine with 2 colors printing

Model	ACE-TNM-1L paper napkin machine with 2 colors printing
Speed	500-800 sheet/min, depends on paper napkin size, paper quality etc.
Napkin size	200x200mm, 300x300mm, 330x330mm, 400x400mm, 430x430mm etc. or customized.
Folding type	1/4, 1/6, 1/8, tallfold
Printing	1-4 colors printing
Power	4.5KW
Electricity	3phase 380V 50hz or 3phase 220v 60hz or customized.

More technical specifications as below.

ACE-TNM-1L Single Line Paper Napkin Machine with 2 colors printing

Technical parameter:
A. back stand
1.Parent roll specification: 18-35g/m2 1-ply; 13-16gsm 2 plies tissue paper napkin or nonwoven. Or to be specified.
2.Parent roll size: ≤Φ1100 x 300mm.  Diameter x Width
3.Core inner diameter: 76mm

B. Feeding Section

1.With 1 jumbo roll stand;
2.Pneumatic cylinder control
3.Stepless adjusting speed to control web-tension of paper.
4.With pneumatic system to automatically load jumbo rolls.
5.With automatic aligner unit to keep the paper napkin running straight.
6.With automatic web tension unit.

C.Embossing Unit of this paper napkin machine.

1.Equipped with 1 set of steel to paper embossing unit. (Embossing pattern provided by client or recommend by us)
2.Mechanical press type or penumatic type.

D.2 Colors Printing Unit of this paper napkin machine (good design.)

1.With 2 colors printing units.
2.Equipped with ceramic anilox rollers for transferring the inks.
3.Printing unit with driven by timing belts to make printing more precise.
4.Simple and easy adjustment of horizontal and longitudinal registration by turning hand wheel.
5.Both sides of Anilox roll & Rubber roll with buffer for anti-spill cover to stop the ink spilling out of the ink tank and spraying somewhere.

E. Folding Section

1.Paper Napkin open size:     300x300mm
2.Paper Napkin folded size:    150x150mm
3.Cylinder size(fixed cutoff size): 300mm.
4.Folding type: 1/4 folded and mechanical folding
5.Synchronizer for feeding paper
6.The gap between 2 folding cylinders are adjustable to fit the machine for papers with different quality and different gsm.
7.With single deck(single lane) output delivery.  (high speed paper napkin machine available.)
8.Speed: about 500 - 700 paper napkin/minute, depending on paper quality, gsm and workers operation.
9.With automatic counting unit. With single tissue paper napkin pop up every count.

Model	ACE-TNM-1L paper napkin machine with 2 colors printing.
Paper Napkin open size	240*240mm, 250*250mm, 300*300mm, 330*330mm, 400*400mm, 430*430mm or customized.
Paper Napkin folded size	120*120mm, 125*125mm, 150*150mm, 165*165mm, 200*200mm, 215*215mm or customized.
Folding types	1/4 fold, 1/2 fold V fold, single sheet without folding, 1/8 fold, 1/12 fold, M fold, Z fold / N fold, 1/12 fold, or customized folding type,
Printing Unit	with 2 colors printing. Can be maximum 4 colors printing. With ceramic anilox for transfer the ink printing.
Embossing Unit	Steel to wool Embossing. Steel ro rubber embossing. Steel to steel embossing to make the finished paper napkin bulky. Steel to mirror embossing (latest embossing technology to make the embossing pattern beautiful). Embossing unit can be with hot heating to make the embossing pattern bulky.
Auto transfer unit	Can be with napkin machine auto transfer unit to transfer the paper napkin to the paper napkin packing machine.

Video of this paper napkin machine for refernece.

Video of automatic paper napkin machine with 2 colors printing and semi-automatic paper napkin packing machine.

Below if video of fully automatic paper napkin machine with auto transfer to automatic paper napkin packing machine without worker hand touch the paper napkins.

F.Control system

1.Controlled by inverter, NOT like others using buttons which is bad.
2.With variable frequency speed control motor, NOT like others use electric magnetic speed regulation motor which is bad.
3.With alarm system when the machine starts or paper breaks or emergency stops.
4.With JOG function.
5.With emergency stop function.
6.With auto sensors for detecting paper breaks or used up. Machine will automatically stop if paper breaks or used up.
7.Famous brand motor.
8.Power: 2.2kw (3-phase AC380V 50Hz) (if 400V 60hz, you can add a transformer by yourself.)
9.Pressure: 0.5MPa.
10.Machine size: 5x1x1.7(M)
11.Weight: about 2500 kg

ACE-SSP-2L Semi Automatic Paper Napkin Packing Machine

1.With double lines packing exits.
2.Packing speed : about 7-25 pack/min, depends on worker.
3.Air supply : 0.6 MPA (Prepared by customer)
4.Power: about 0.4 KW+0.8KW, single phase 220-240V 50Hz.
5.Allowable packing size: L(120-230)*W(120-200)*H(50-150mm) (please confirm specific width in advance.
6.Machine sizes: 2500*1050*1150 mm
