China 20 years’ experience professional manufacturer of 2Lanes High Speed 1/8 Fold Dinner Napkin Machine with 2 Colors Printing and Embossing by ACE MACHINERY CO., LIMITED China. Can customize lamination or colors printing.


  • Product No.: ACE-DNM-2L

Details

2Lanes High Speed 18 Fold Dinner Napkin Machine with 2 Colors Printing and Embossing

Technical parameters of 2Lanes High Speed 18 Fold Dinner Napkin Machine with 2 Colors Printing and Embossing

Type

DNM-2L

Output

2lines output.
1lines, 3lines and 4lines output available and customized.

Speed 500-800 sheet/min/line x 2lines = 1000-1600 sheet/min

Raw material

13-18g/m2 2-ply virgin tissue; 18-35g/m2 single ply tissue and others

Jumbo roll size

≤ 660mm x  Φ 1200mm (Width x Diameter)  Or to be customized.

Unfolded size

330x330mm±2mm     (Other sizes 330x330mm, 430x380mm available.please specify your size)

Folded size

165x82.5mm±2mm

Folding type

1/8 fold,
1/6 fold,
1/4 fold,
L shape folding and other special folds.
Vacuum folding;

Control

Inverter control
Emergency stop

Automatic stop if paper breaks or used up.
JOG
Stepless adjusting speed

Auto count

1—999 sheets

Embossing

steel to paper embossing. Any LOGO, words etc.
steel to steel    optional
NEW Embossing Technology available, to be discussed further.



Printing





2 colors printing units. (flexo printing and changeable printing pattern)

Cluster ink net grain roller

Printing roller can be adjusted

Printing contraposition setting

In-phase belt, gear drive

Stainless steel

Back stand

Strong steel configuration

One back stand

Power

AC380V  50HZ or 220V 60HZ or customized.

Air pressure

0.5 Mpa(buyer supply)

More details like photos and videos available. Please contact us.

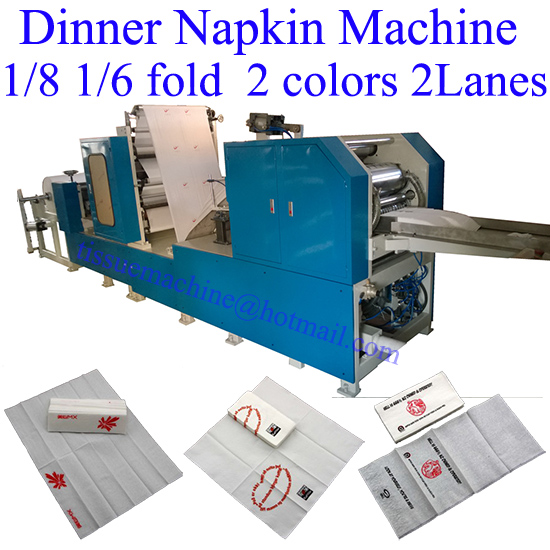

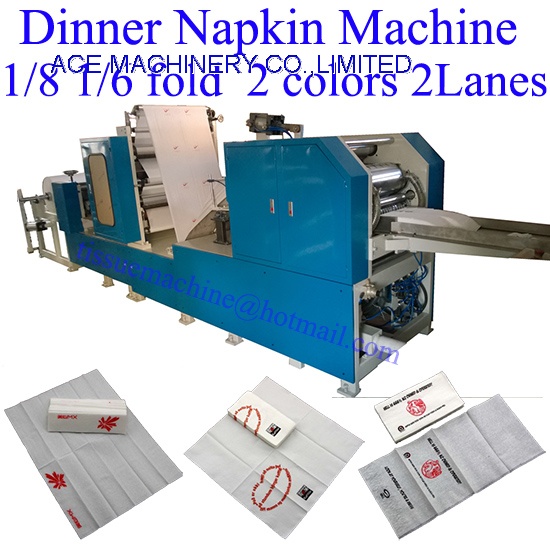

Overall view of 2lines Output Automatic High Speed Printing Dinner Napkin Machine.

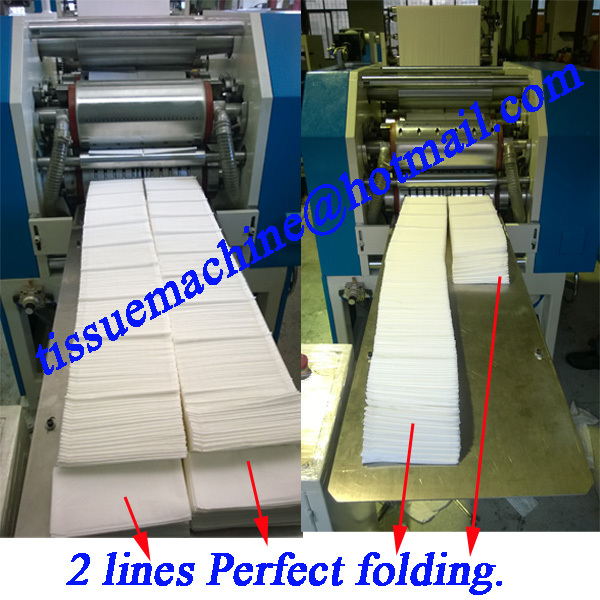

2 lines Output with perfect folding of our 2lines Output Automatic High Speed Printing Dinner Napkin Machine

2lines perfect







Perfect folding of 2lines Output Automatic High Speed Printing Dinner Napkin Machine .

Perfect fold

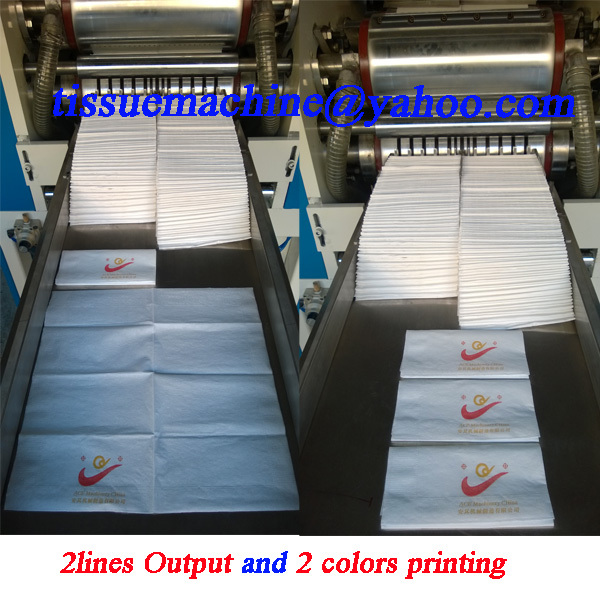

2lines output and 2 colors printing of our 2lines Output Automatic High Speed Printing Dinner Napkin Machine

output





Finished 2 colors printed dinner napkins produced by our 2lines Output Automatic High Speed Printing Dinner Napkin Machine.

Finished



Dispenser napkins with 2 colors printing made by our 2lines Output Automatic High Speed Printing Dinner Napkin Machine .

color white





Our 2lines Output Automatic High Speed Printing Dinner Napkin Machine is with 2 colors printing units. Each printing unit can be adjusted flexibly. Each printing unit is with Doctor Blade and covers to remove the surplus ink to ensure high speed running without ink spraying out of the ink tank.





On the back side of the printing units of our  2lines Output Automatic High Speed Printing Dinner Napkin Machine are also with Doctor Blades to remove the ink and paper dusts.

Doctor Blade





Our 2lines Output Automatic High Speed Printing Dinner Napkin Machine  is with steel to paper embossing unit. Steel to steel is optional. We have NEW Embossing Technology. Please contact us for more details.



Emboss



Embossing unit of 2lines Output Automatic High Speed Printing Dinner Napkin Machine  is with sensors. If paper break or used up, the machine will automatically stop.

Emboss





Embossing patterns of our 2lines Output Automatic High Speed Printing Dinner Napkin Machine  can be such LOGO, brand name etc. as shown as below.

Pattern





Folding way of our 2lines Output Automatic High Speed Printing Dinner Napkin Machine is 1/8 fold, 1/6 fold etc. Other special folding also available to be customized.



Fold way







Our 2lines Output Automatic High Speed Printing Dinner Napkin Machine  can also make other special folding dispenser napkins as shown below.

Low fold





Our 2lines Output Automatic High Speed Printing Dinner Napkin Machine  can also make other special folding dispenser napkins as shown below.

Shape-3



Our 2lines Output Automatic High Speed Printing Dinner Napkin Machine  can also make other special folding as shown below.

Folding 1-6
