3 Colors High Quality Multi colors Printing Paper Napkin Machine
TNM-3C 1-8 Colors High Quality Multi Colors Paper Napkin Printing Machine Automatic Serviette Tissue Paper Embossing Fully Printed 1,2,3,4,5,6,7,8 Colors
Technical parameters of TNM-3C 1-8 Colors High Quality Multi Colors Paper Napkin Printing Machine Automatic Serviette Tissue Paper Embossing Fully Printed 1,2,3,4,5,6,7,8 Colors.
|
Model |
240 |
250 |
300 |
330 |
400 |
460 |
Other sizes to be specified. |
|
Unfolded size |
240x240mm |
250x250mm |
300x300mm |
330x330mm |
400x400mm |
460x460mm |
|
|
Folded size |
120x120mm |
125x125mm |
150x150mm |
165x165mm |
200x200mm |
230x230mm |
|
|
Jumbo roll width |
240mm |
250mm |
300mm |
330mm |
400mm |
460mm |
|
|
Jumbo roll diameter |
≤1200mm. |
||||||
|
Inner core diameter |
3”(76mm) |
||||||
|
Raw Material |
13-18 g/m2 for 2 plies, 18-35 g/m2 for single ply wooden pulp tissue. Other g/m2 to be customized. Other material like Nonwoven or Airlaid to be customized. |
||||||
|
Production Speed |
400-700 pc/min (about 150 m/min) depending on napkin sizes, paper quality and workers operation. |
||||||
|
Folding Section |
Mechanical folding with band saw cutting system. 1/4 fold. 1/8 fold,1/6 fold or special folding to be customized. 1/4 1/8 1/6折。. |
||||||
|
Unwinder Section |
One unwinder. Automatic loading jumbo roll pneumatically. With wide flat belt driven. With tension system manually adjusted by cone pulley |
||||||
|
Embossing section |
Steel to paper (wool-coated) embossing unit. Mechanical press system. Controlled by screws. With felt oil wiper for removing static electricity, tissue wastes, and dusts from the rollers. |
||||||
|
Printing Section |
3 colors printing. (Maximum 8 colors.) Flexographic printing, printing LOGO changeable. With felt oil wiper for removing static electricity, tissue wastes, and dusts from the rollers. |
||||||
|
|
|
||||||
|
Tension system |
Manually adjusted by cone pulley or speed controller. |
||||||
|
Counting system |
Pneumatic counting. One tissue pops up every count of 50sheets,100 sheets, 150seets etc. adjustable. |
||||||
|
Control system |
Frequency speed control (inverter control) JOG function Emergency stop function Auto stop if paper breaks. Optical sensor detecting |
||||||
|
Installed Power |
3-4.5KW for main motor, 0.5KW for band saw motor, 3phase 380V 50hz or customized. |
||||||
|
Air Pressure |
0.5Mpa(prepared by the customer). |
||||||
|
Optional Items |
|||||||
|
Embossing Section |
Steel to steel or steel to rubber. Newly-innovated embossing technology. |
||||||
|
Calendaring Section |
Steel to steel or steel to rubber. |
||||||
|
Printing Section |
1-8 colors flexographic printing Water-based ink printing Ceramic anilox. Drying system. Closed printing system. |
||||||
|
Ink System |
Automatic circulatory system. |
||||||
|
Auto Web Guide System |
Electrical system. |
||||||
|
Auto web tension system |
Famous brand. |
||||||
|
Other requirements to be customized. |
|||||||

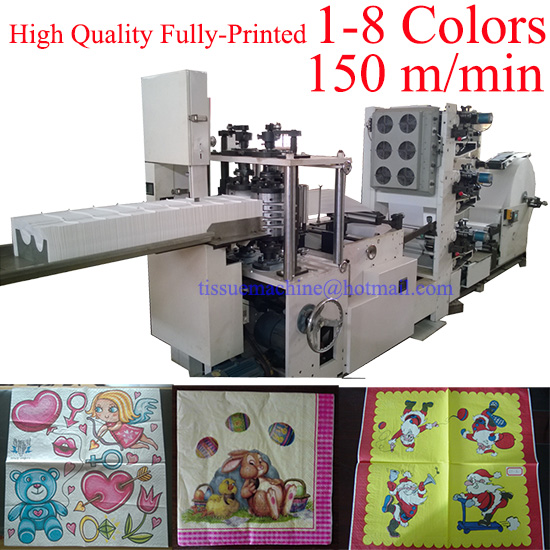

Overall view of our
1-8 Colors High Quality Multi Colors Paper Napkin Printing Machine Automatic Serviette Tissue Paper Embossing Fully Printed 1,2,3,4,5,6,7,8 Colors.

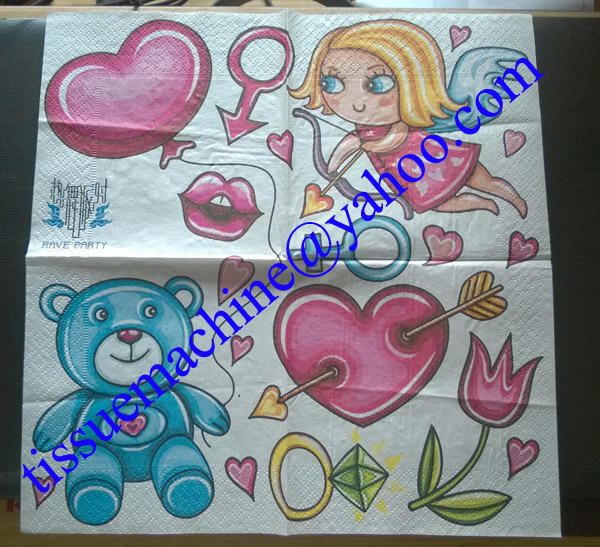

Finished napkins produced by
1-8 Colors High Quality Multi Colors Paper Napkin Printing Machine Automatic Serviette Tissue Paper Embossing Fully Printed 1,2,3,4,5,6,7,8 Colors.

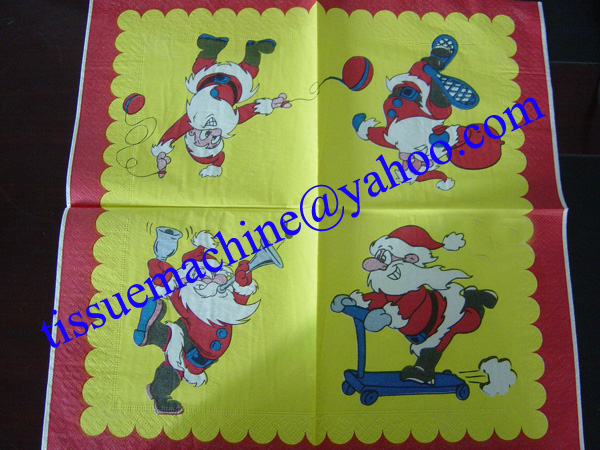

Finished napkins made by
1-8 Colors High Quality Multi Colors Paper Napkin Printing Machine Automatic Serviette Tissue Paper Embossing Fully Printed 1,2,3,4,5,6,7,8 Colors
.
Napkin papers made by
1-8 Colors High Quality Multi Colors Paper Napkin Printing Machine Automatic Serviette Tissue Paper Embossing Fully Printed 1,2,3,4,5,6,7,8 Colors.
