Fully Automatic Pocket Tissue Paper Handkerchief hanky Machine Production Line

Main technical parameters of No Need Worker A to Z Pocket Tissue Fully Automatic Handkerchief Machine Production Line.

Type	PTL No Need Worker A to Z Pocket Tissue Fully Automatic Handkerchief Machine Production Line
Folding Machine for pocket tissue/paper handkerchief
Output	2lines output delivery.   1line delivery also available or customized.
Speed	600-700 sheet/min/line x 2lines
Raw material	13-18g/m2 2-ply virgin tissue; 18-35g/m2 single ply tissue and others
Jumbo roll size	≤ 420mm x  Φ 1200mm (Width x Diameter)  Or to be customized.
Unfolded size	210x210mm±2mm   or   200x200mm±2mm (please specify your size)
Folded size	Long type: 105x52mm±2mm Short type:   75x52 mm±2mm
Folding type	1/16 fold, 1/12 fold etc. Vacuum folding;
Control	Inverter control Emergency stop Automatic stop if paper breaks or used up. JOG Stepless adjusting speed
Auto count	1—999 sheets
Embossing	steel to paper embossing. Any LOGO, words etc. steel to steel or rubber    optional NEW Embossing Technology available, to be discussed further.
Printing	2 colors printing units. (flexo printing and changeable printing pattern). More colors printing available.
	Cluster ink net grain roller
	Printing roller can be adjusted
	Printing contraposition setting
	In-phase belt, gear drive
	Stainless steel
Back stand	Strong steel configuration
	One back stand
Power	AC380V  50HZ or 220V 60HZ or customized.
Air pressure	0.5 Mpa(buyer supply)
Fully Automatic Transfer and Counting System
Transfer system	Fully Automatic transfer the pocket tissue/paper handkerchief from the folding machine to the packing machine. NO need worker.
Counting system	Auto counting and shifting to the conveyor.
Automatic Pocket Tissue/Paper Handkerchief Single Bag Packing Machine
Pack speed	60-90 bag/min
Control system	PLC Touch screen Inverter control
Pack format	8,9,10,12 pc/pack etc.
Automation	Fully Automatic
Optional	Labeling system Coding system for production date etc.
Automatic Pocket Tissue/Paper Handkerchief Multi Bags Bundling Packing Machine
Pack speed	15-25 pack/min
Pack format	6,8,10,12 bag/pack in 2 rows or customized.
Control system	PLC Touch screen Inverter control
Automation	Fully automatic
More details like photos and videos available. Please contact us.



Below are more details of No Need Worker A to Z Pocket Tissue Fully Automatic Handkerchief Machine Production Line.

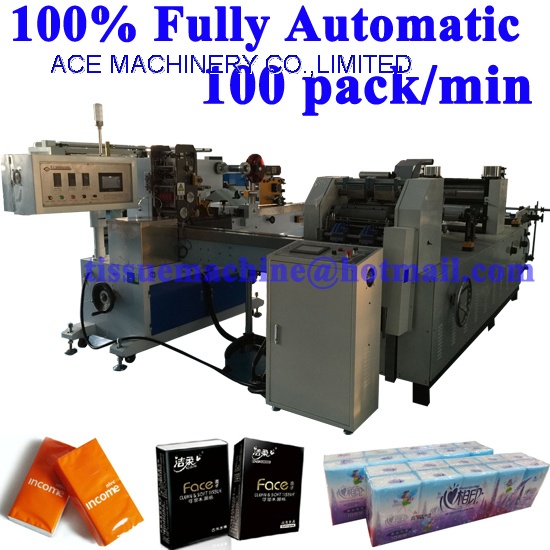

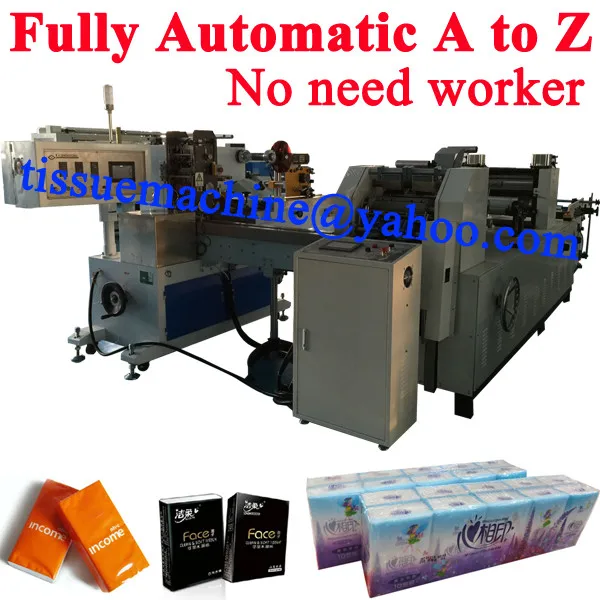

Actual photos of No Need Worker A to Z Pocket Tissue Fully Automatic Handkerchief Machine Production Line



Actual photos of No Need Worker A to Z Pocket Tissue Fully Automatic Handkerchief Machine Production Lin





2Lanes Delivery of High Speed Automatic Handkerchief Making Machine.





2 Lanes output delivery of No Need Worker A to Z Pocket Tissue Fully Automatic Handkerchief Machine Production Line.



  Single Lane output delivery of No Need Worker A to Z Pocket Tissue Fully Automatic Handkerchief Machine Production Line.





Our No Need Worker A to Z Pocket Tissue Fully Automatic Handkerchief Machine Production Line can be with 2 colors printing units. Each printing unit can be adjusted flexibly. Each printing unit is with Doctor Blade and covers to remove the surplus ink to ensure high speed running without ink spraying out of the ink tank.





On the back side of the printing units of our No Need Worker A to Z Pocket Tissue Fully Automatic Handkerchief Machine Production Line are also with Doctor Blades to remove the ink and paper dusts.





Below are embossing patterns made by the NEW Embossing Technology of No Need Worker A to Z Pocket Tissue Fully Automatic Handkerchief Machine Production Line.





Embossing patterns of our No Need Worker A to Z Pocket Tissue Fully Automatic Handkerchief Machine Production Line can be such LOGO, brand name etc. as shown below.





Final multi colors printed paper handkerchief / pocket tissue with longer size made by No Need Worker A to Z Pocket Tissue Fully Automatic Handkerchief Machine Production Line.







Final paper handkerchief/pocket tissue both long size and short size produced on one machine No Need Worker A to Z Pocket Tissue Fully Automatic Handkerchief Machine Production Line.









Final paper handkerchief/pocket tissue package made by our No Need Worker A to Z Pocket Tissue Fully Automatic Handkerchief Machine Production Line.

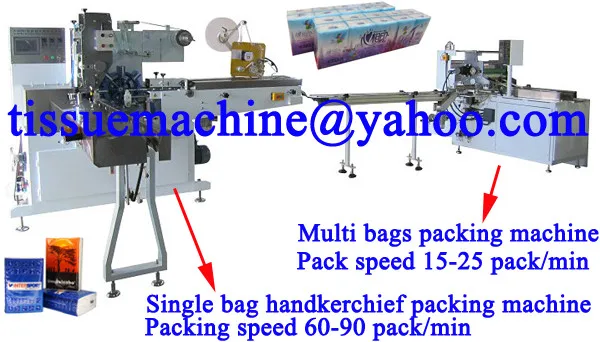

Sinle bag packing machine connecetd to multi bags bundle packing machine of No Need Worker A to Z Pocket Tissue Fully Automatic Handkerchief Machine Production Line.





Sinle bag packing machine of No Need Worker A to Z Pocket Tissue Fully Automatic Handkerchief Machine Production Line.
